SLU16CH036 Series
SLU16CH036-24-G21-MA16-12B
Slotless BLDC Motor

Featured product media

Quick Facts

SLU16CH036-24-G21-MA16-12B Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.475 A Rated Current
  • 19.1346 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.590 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Encoder + Gearhead
Weight0.17 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 726 RPM
No Load Current130 mA
Nominal Speed603 RPM
Rated Speed590 RPM
Rated Torque19.1346 oz-in
Rated Current0.475 A
Stall Torque148.6925 oz-in
Stall Current3.81 A
Max. Efficiency68.6%

Motor Characteristics

Terminal Resistance6.3 ohm
Terminal Inductance0.409 mH
Speed/Torque Gradient 36.5359 RPM/oz-in
Speed Constant620 RPM/V
Mechanical Time Constant1.62 ms

Motor Mechanical Data

Max. Radial Load11.24 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor525 s
Thermal time constant winding1.35 s

Gearhead Specifications

Gearhead Reduction Ratio21
Nominal Reduction Ratio21

Encoder Specifications

Encoder Type12-bit single-turn absolute magnetic encoder

Dimensions

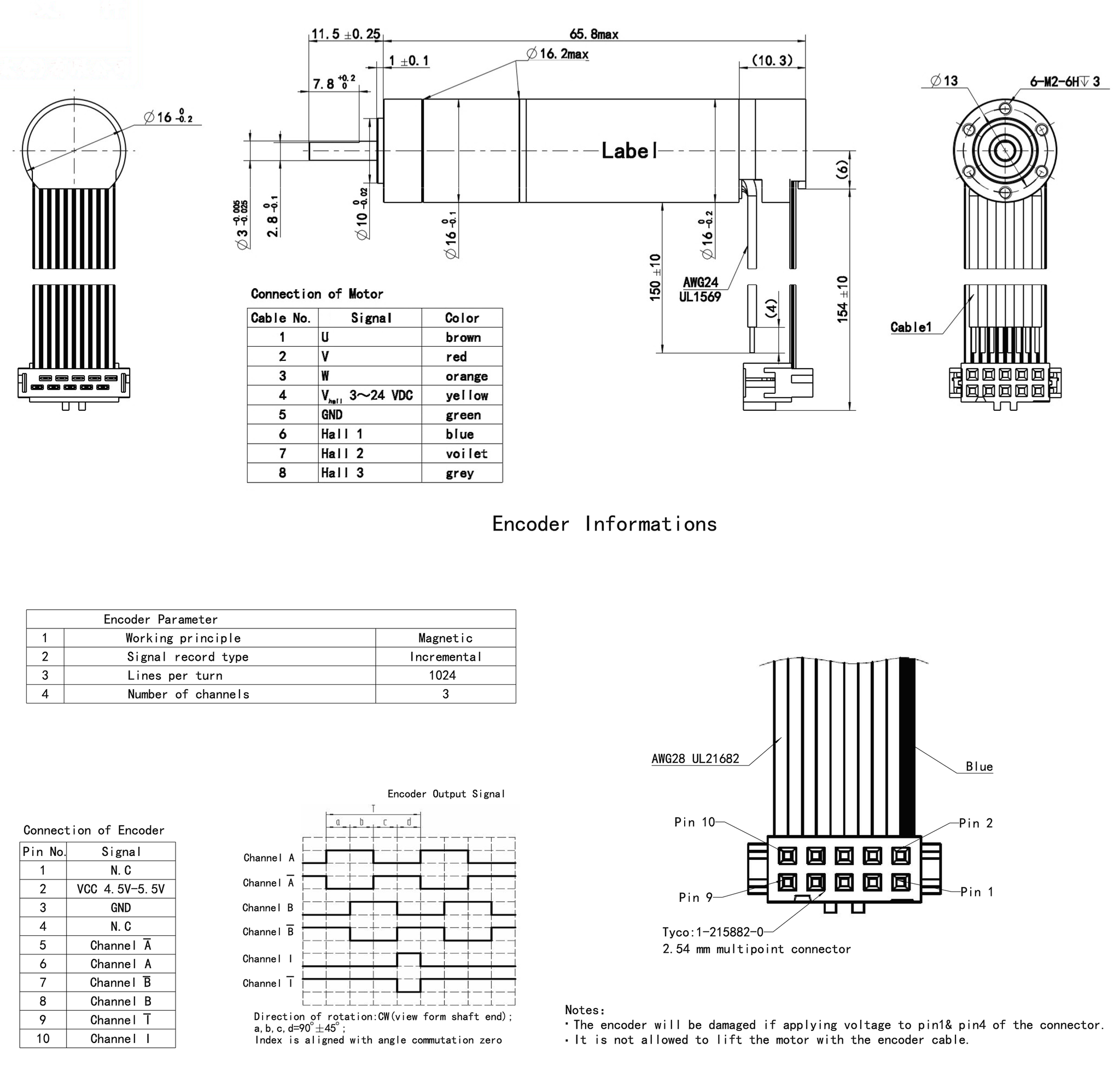

ModelDIM. A (length) in MAX
SLU16CH036-24-G21-MA16-12B2.590 in

Performance Curve

SLU16CH036-24-G21-MA16-12B
@24 VDC, 21:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU16CH036 Series

Downloads

SLU16CH036-24-G21-MA16-12B Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
