SLU16CH036 Series
SLU16CH036-24
Slotless BLDC Motor

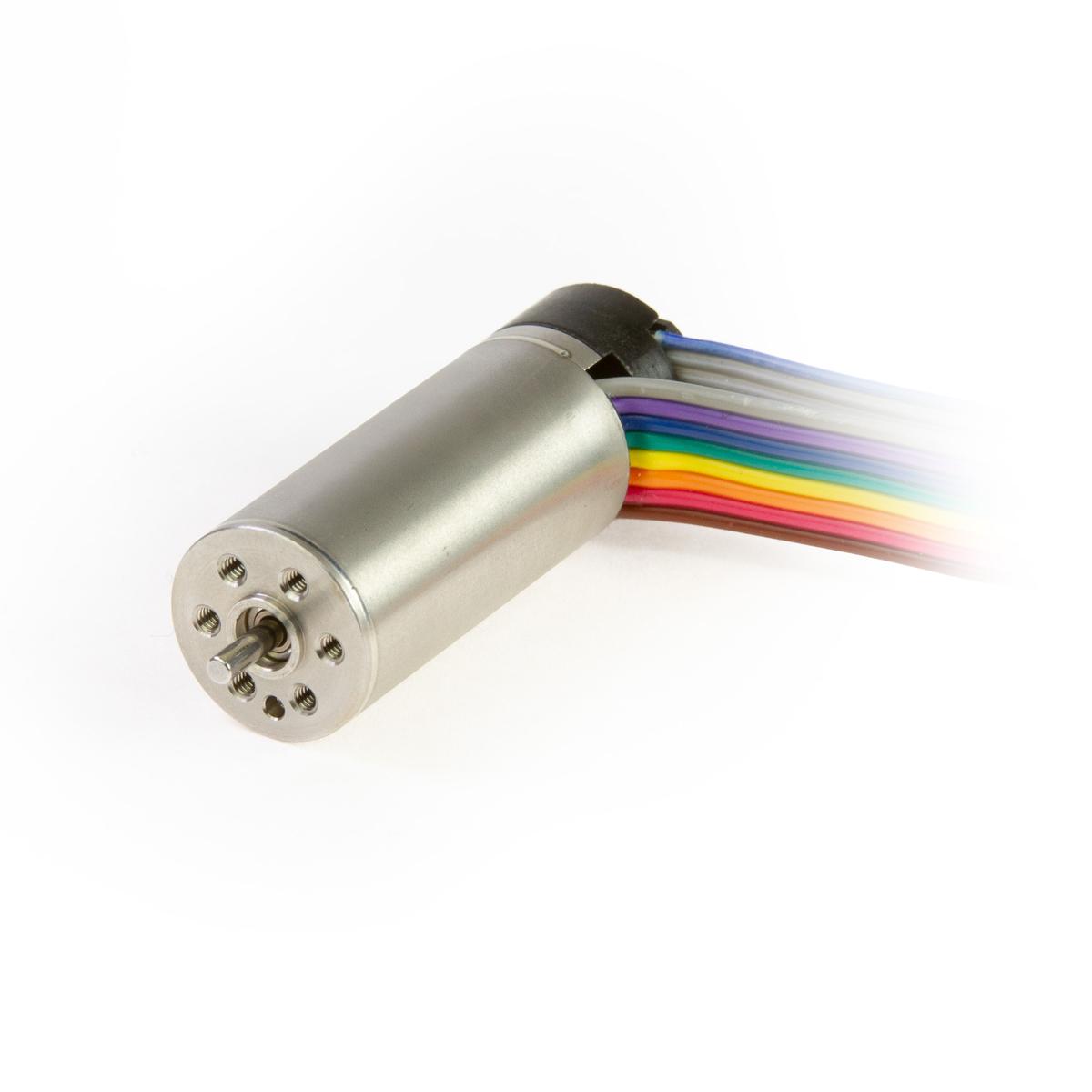

Featured product media

Quick Facts

SLU16CH036-24 Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.475 A Rated Current
  • 1.0621 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.400 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor Only
Weight0.099 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 15200 RPM
No Load Current115 mA
Nominal Speed12660 RPM
Nominal Torque (Max Cont. Torque)1.4161 oz-in
Nominal Current (Max Cont. Current)0.76 A
Rated Speed12350 RPM
Rated Torque1.0621 oz-in
Rated Current0.475 A
Stall Torque8.3126 oz-in
Stall Current3.81 A
Max. Efficiency80%

Motor Characteristics

Terminal Resistance6.3 ohm
Terminal Inductance0.41 mH
Speed/Torque Gradient 35.9694 RPM/oz-in
Speed Constant620 RPM/V
Mechanical Time Constant1.49 ms
Rotor Inertia0.003 oz-in²

Motor Mechanical Data

Radial playPreloaded
Max. Radial Load1.349 lbf
Distance From Flange For Radial Load5 in
Max Force For Press Fit4.046 lbf
Max Speed (Mechanical)30000 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Insulation ClassF
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal resistance (Housing-Ambient)68.90 °F/W
Thermal resistance (Winding-Housing)37.94 °F/W
Thermal time constant motor525 s
Thermal time constant winding0.72 s

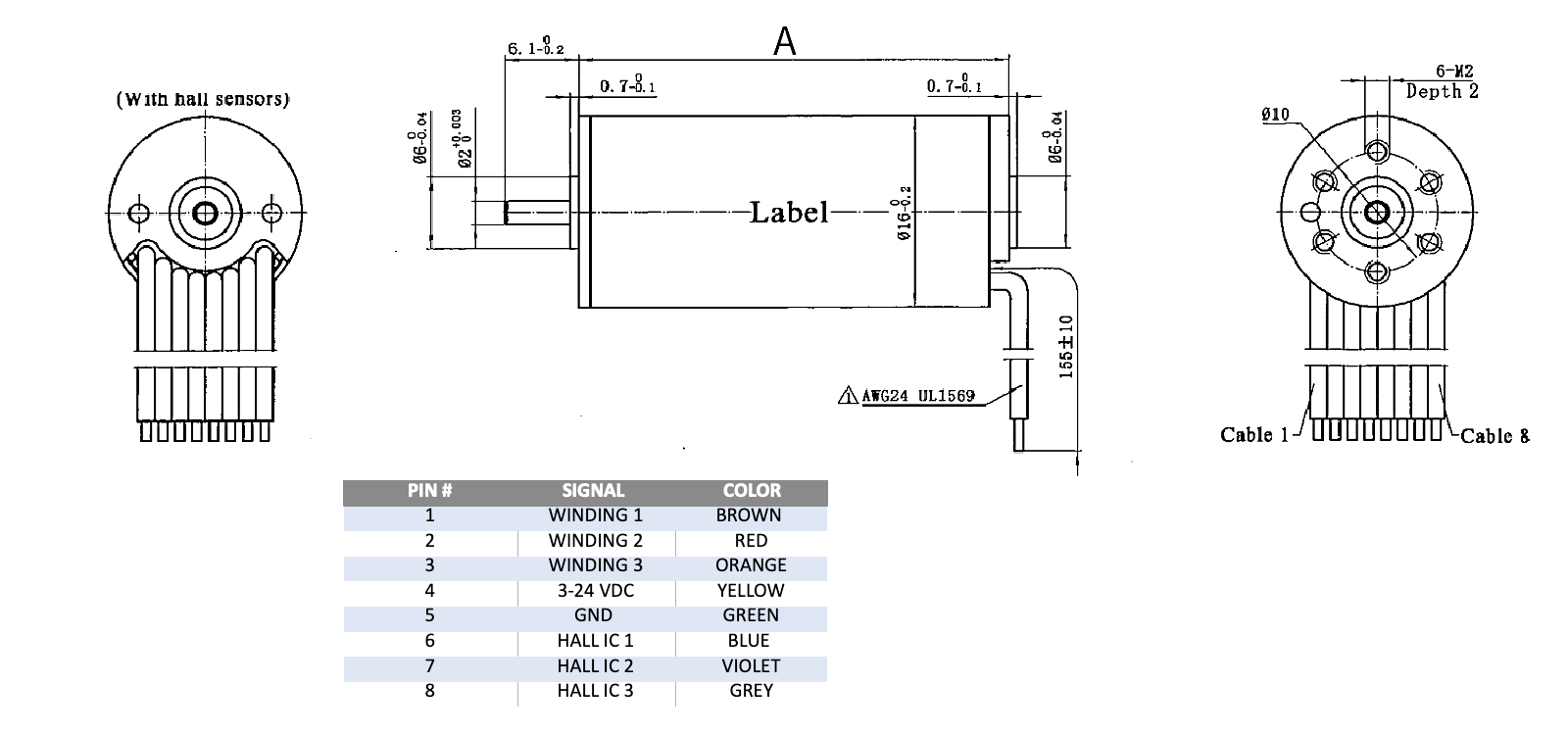

Dimensions

ModelDIM. A (length) in MAX
SLU16CH036-241.400 in
