SLU16CH036 SeriesSLU16CH036-12-G7Slotless BLDC Motor
Quick Facts

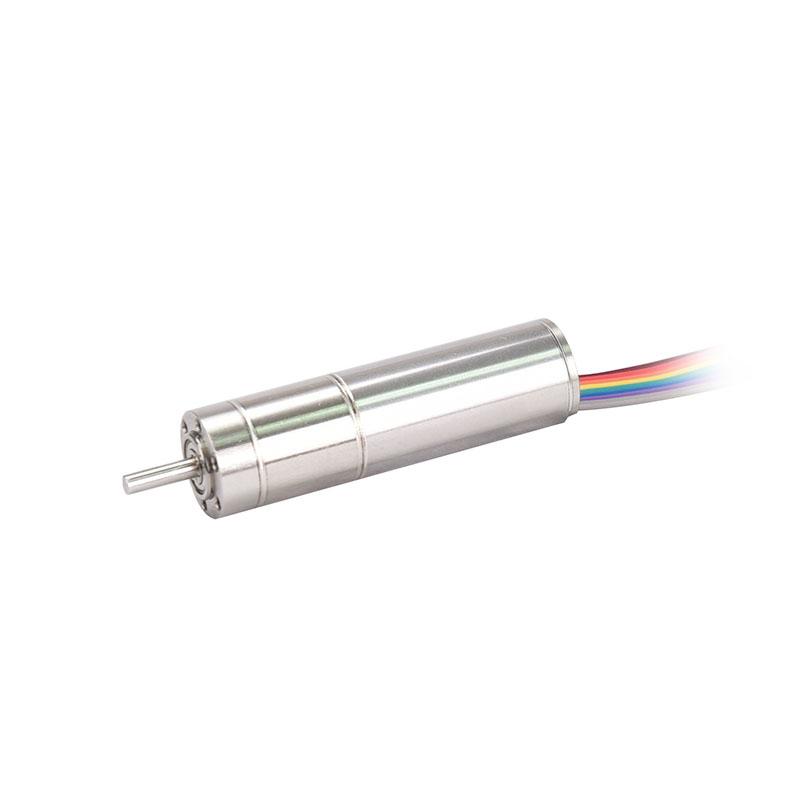

SLU16CH036-12-G7 Slotless BLDC Motors
SLU16CH036-12-G7 Slotless BLDC Motors
Specifications:
- 0.630 in Frame Size
- 0.97 A Rated Current
- 6.7832 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 2.030 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 0.630 in |
| Motor Type | Motor + Gearhead |
| Weight | 0.143 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 12 VDC |
| No Load Speed | 2273 RPM |
| No Load Current | 200 mA |
| Nominal Speed | 1754 RPM |
| Rated Speed | 1667 RPM |
| Rated Torque | 6.7832 oz-in |
| Rated Current | 0.97 A |
| Stall Torque | 48.7145 oz-in |
| Stall Current | 7.27 A |
| Max. Efficiency | 75% |
Motor Characteristics
| Terminal Resistance | 1.65 ohm |
| Terminal Inductance | 0.102 mH |
| Speed/Torque Gradient | 37.6688 RPM/oz-in |
| Speed Constant | 1240 RPM/V |
| Mechanical Time Constant | 1.67 ms |
Motor Mechanical Data
| Max. Radial Load | 11.24 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 525 s |
| Thermal time constant winding | 1.35 s |
Gearhead Specifications
| Gearhead Reduction Ratio | 7 |
| Nominal Reduction Ratio | 7 |

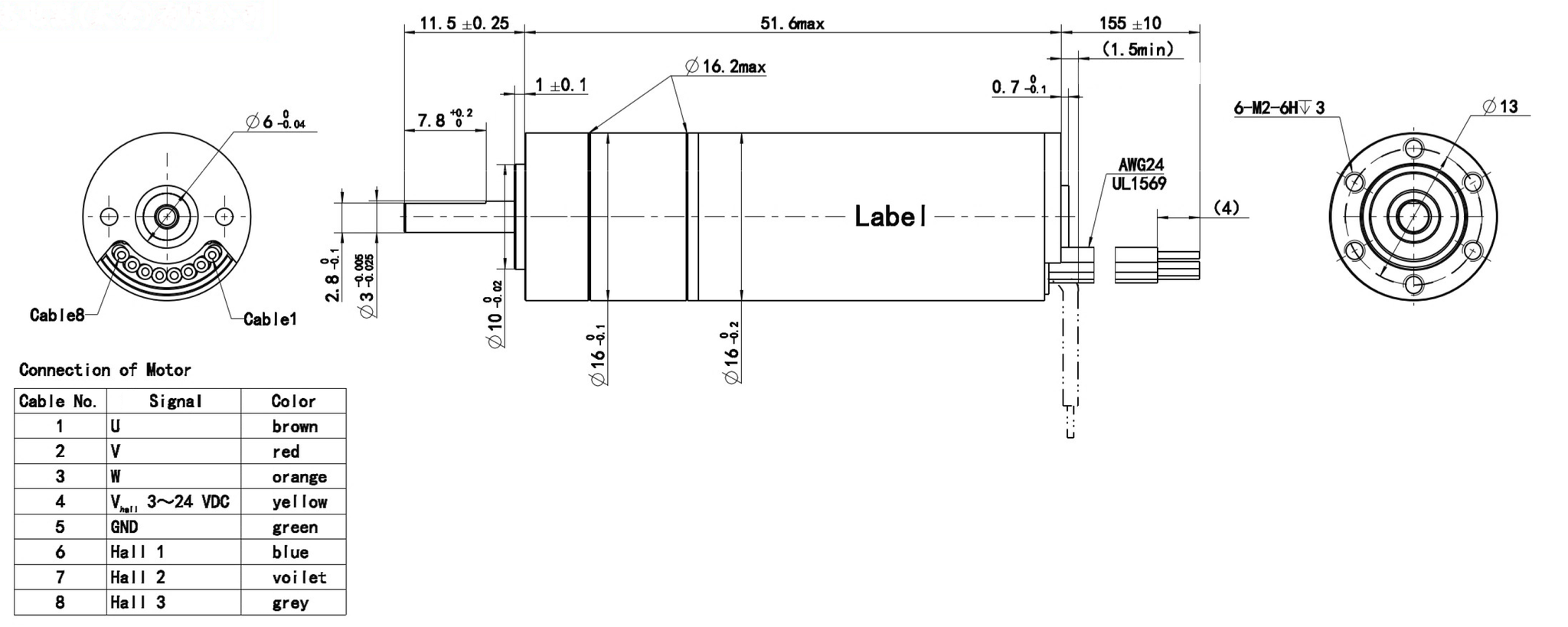

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU16CH036-12-G7 | 2.030 in |
Performance Curve
SLU16CH036-12-G7
@12 VDC, 7:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
SLU16CH036 Series
Downloads
SLU16CH036-12-G7 Configured Datasheet (PDF)
