SLU16CH036 Series
SLU16CH036-12-G172-MA16-12B
Slotless BLDC Motor

Featured product media

Quick Facts

SLU16CH036-12-G172-MA16-12B Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.525 A Rated Current
  • 73.6382 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 2.770 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Encoder + Gearhead
Weight0.168 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 87.2 RPM
No Load Current200 mA
Nominal Speed71 RPM
Rated Speed76 RPM
Rated Torque73.6382 oz-in
Rated Current0.525 A
Stall Torque1090.4119 oz-in
Stall Current7.27 A
Max. Efficiency64.8%

Motor Characteristics

Terminal Resistance1.65 ohm
Terminal Inductance0.102 mH
Speed/Torque Gradient 37.6688 RPM/oz-in
Speed Constant1240 RPM/V
Mechanical Time Constant1.67 ms

Motor Mechanical Data

Max. Radial Load11.24 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor525 s
Thermal time constant winding1.35 s

Gearhead Specifications

Gearhead Reduction Ratio172
Nominal Reduction Ratio172

Encoder Specifications

Encoder Type12-bit single-turn absolute magnetic encoder

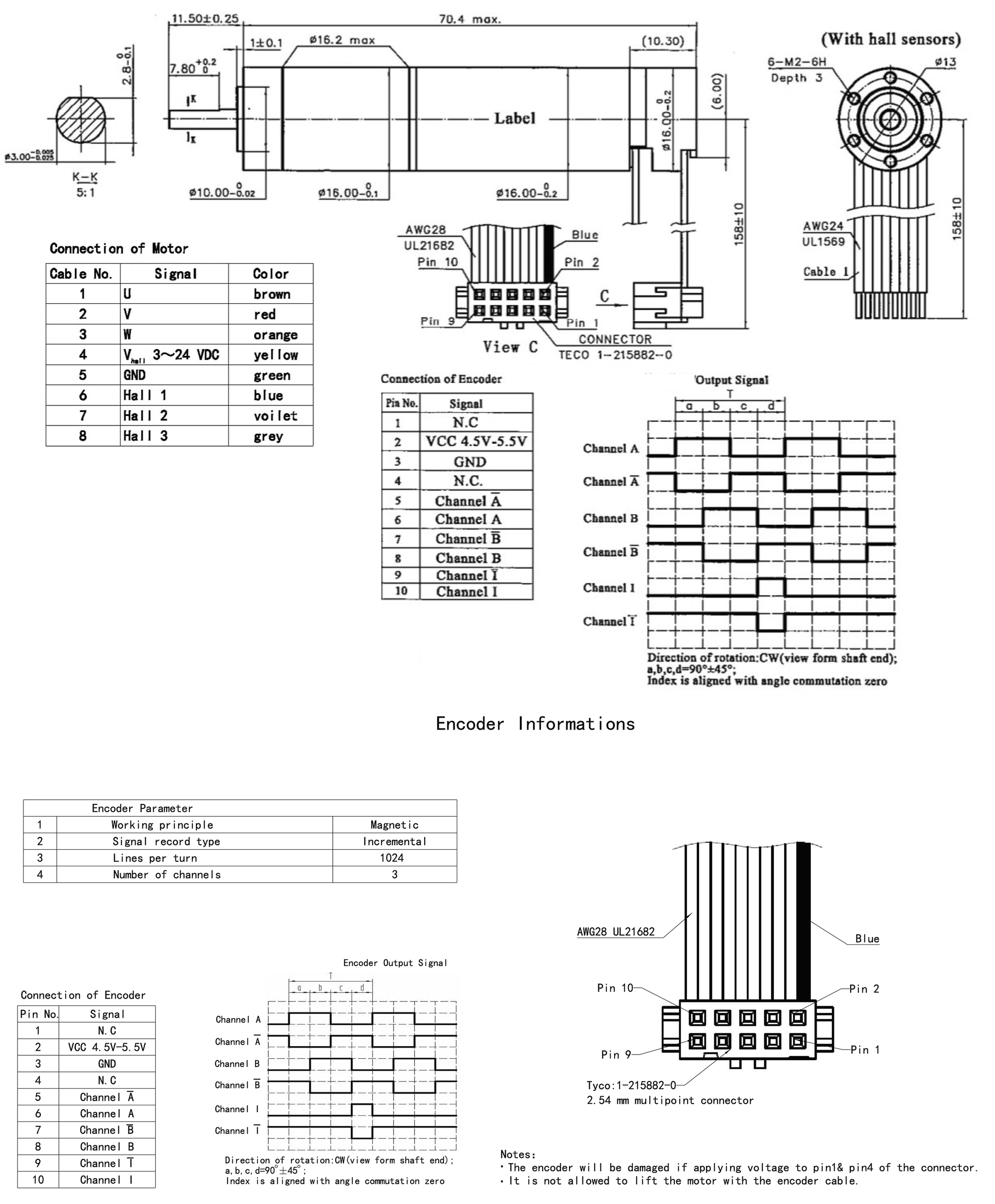

Dimensions

ModelDIM. A (length) in MAX
SLU16CH036-12-G172-MA16-12B2.770 in

Performance Curve

SLU16CH036-12-G172-MA16-12B
@12 VDC, 172:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU16CH036 Series

Downloads

SLU16CH036-12-G172-MA16-12B Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
