- 0.510 in Frame Size
- 0.91 A Rated Current
- 0.7888 oz-in Rated Torque
- 18 VDC Nominal Voltage
- 1.470 in Length
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
- Wide speed range (up to 40,000 rpm)
10 Available in 2 Business Days
2 Business Days
|Frame Size||0.510 in|
|Body Length||1.470 in|
|Nominal Voltage||18 VDC|
|No Load Speed||23400 RPM|
|No Load Current||121 mA|
|Max Speed||40000 RPM|
|Rated Torque||0.7888 oz-in|
|Rated Current||0.91 A|
|Speed Torque Gradient||115.1305 RPM/oz-in|
Motor Operating Specifications
|Axial play||0.002 in|
|Max. force for press fits (static)||2.248 lbf|
|Ambient Temperature||-40 ° to 212.00 °F|
|Max winding temperature||311.00 °F|
|Thermal resistance (Housing-Ambient)||73.40 °F/W|
|Thermal resistance (Winding-Housing)||35.40 °F/W|
|Thermal time constant motor||350 s|
|Thermal time constant winding||0.48 s|
|Number of pole pairs||1|
Features And Benefits

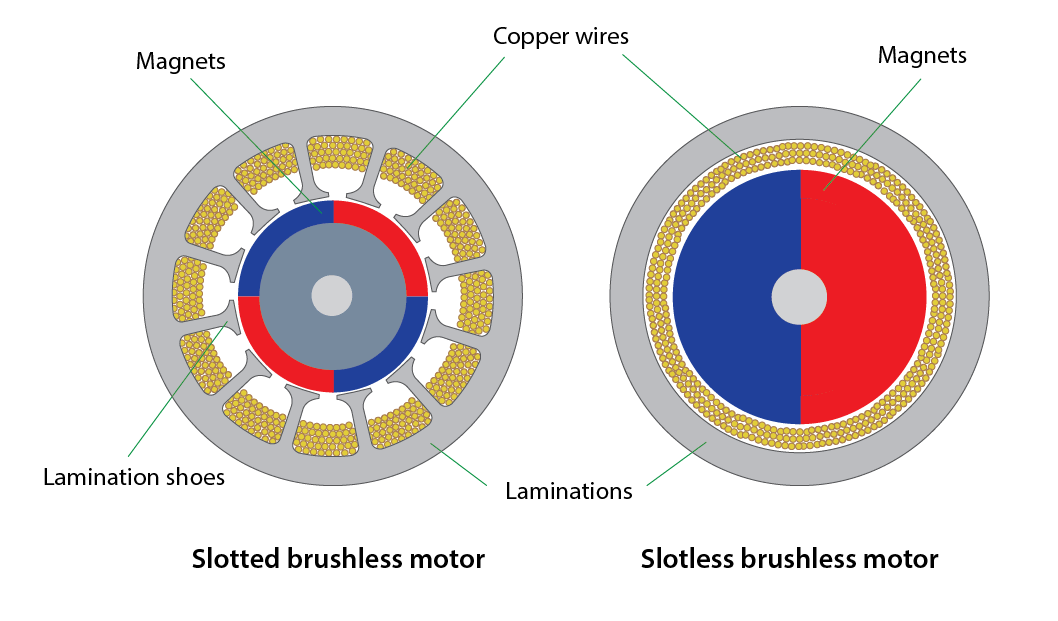

A typical brushless BLDC motor is constructed using a stator with “slots”; a copper wire is then wound around these slots. Although this technology works well, it has an inherent problem with cogging (or drag torque), which presents a challenge in applications needing fast response, fast acceleration and smooth operation.

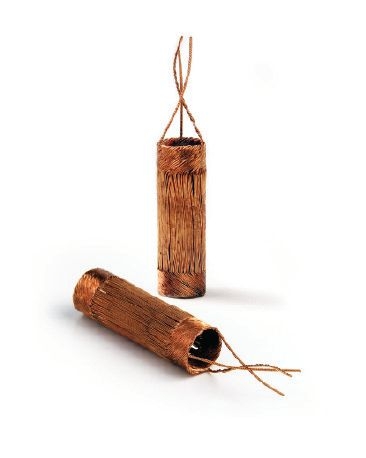

To combat these issues, we’ve removed the slots from the motor. Instead of slots, we’re using a unique process of winding the copper wire without the need of them. This drastically reduces cogging and improves the motor’s ability to respond, accelerate quickly, and operate smoothly. Slotless BLDC motors are also quieter and provide more power with a smaller frame size than their slotted counterparts.
Reliable long life expectancy
Our motors are built to withstand at least 20,000 hours of continuous (24/7) operation. This means that you can feel confident that even your most sensitive application will operate reliably for a very long time.
Nearly silent operation
Detent torque is the biggest culprit of generated noise. Removing the slots and thus eliminating the detent torque drastically reduces the noise output of the motor.
Modular design for better customization
The modular design lets us combine the motor with a gearhead to match your specific speed and torque requirements. Also, our slotless BLDC motors are available in many windings so we can satisfy your requirements precisely. You can also customize the motor with sensors such as an optical encoder or hall sensor to provide accurate positioning control, velocity, and direction feedback.
Our unique manufacturing process lets us create motors that are built to your exact specifications, while remaining highly cost effective. Get exactly what you need without breaking your budget.
Slotless BLDC Motor Applications
- Robotic grippers and claws
- Medical and surgical tools
- Miniature pumps and ventilators
- Testing and measuring equipment
- Semiconductor handling equipment

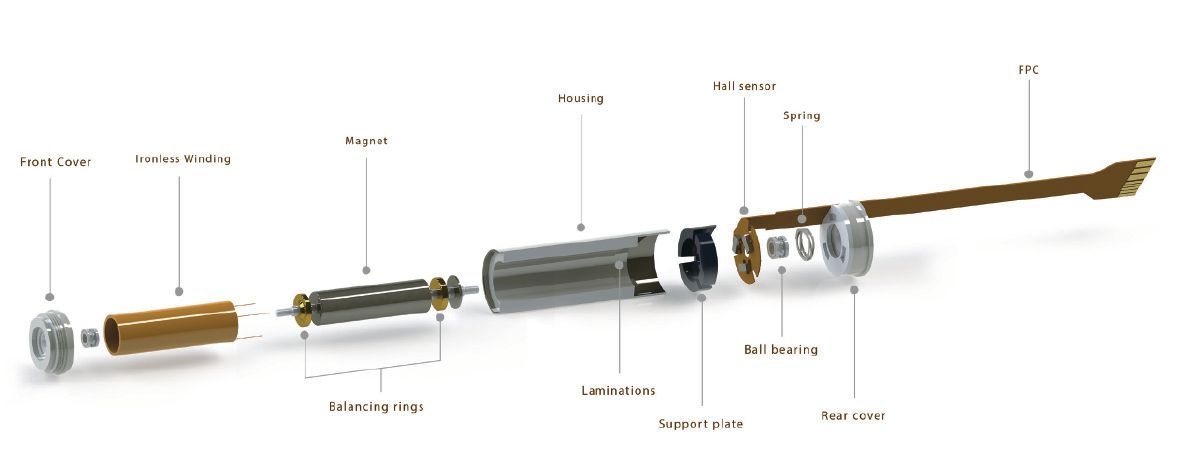

Slotless BLDC Motor Construction
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
