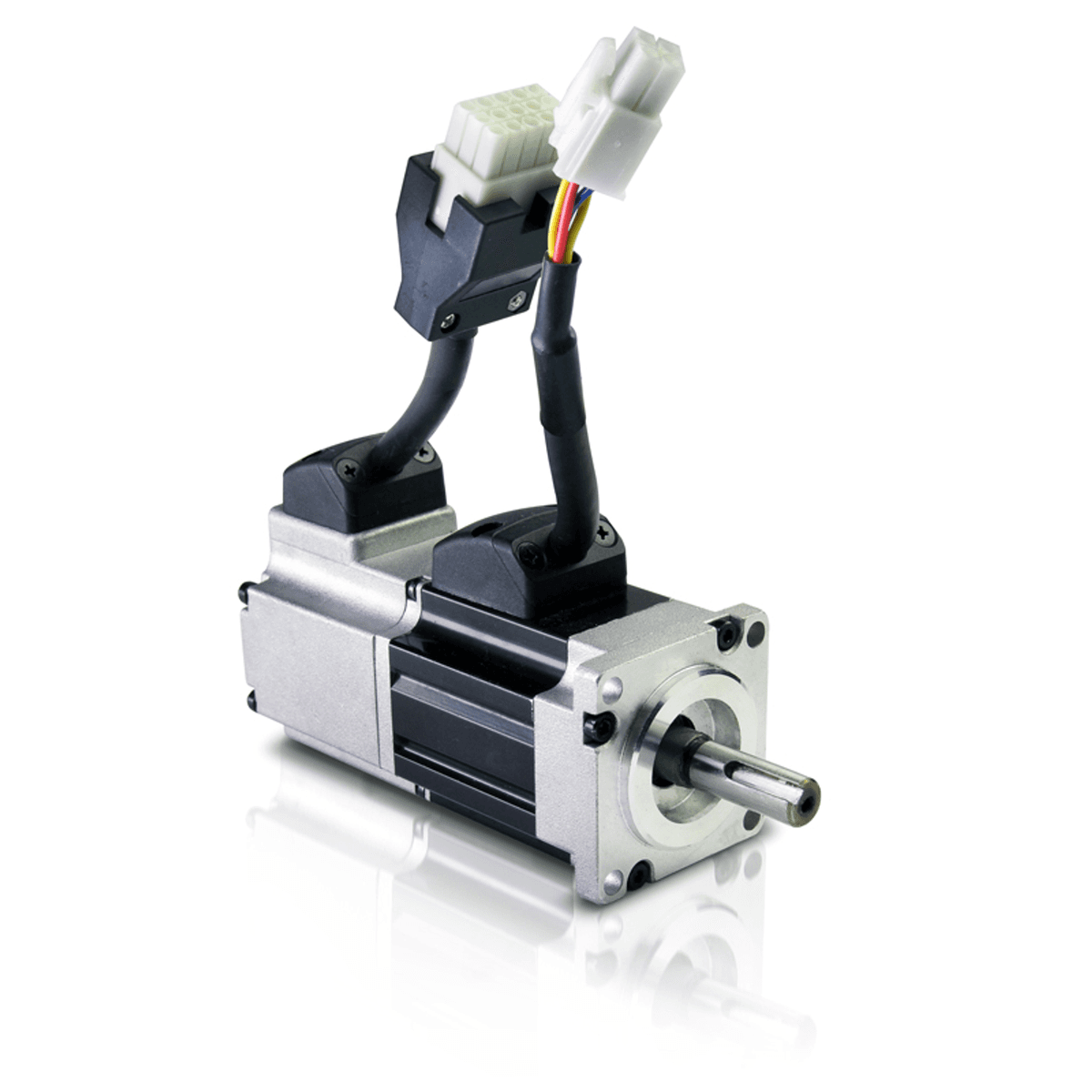

SBL40DC Series
SBL40D2-02
Servo BLDC Motor

Specifications:
  • 1.570 in Frame Size
  • 5.2 A Rated Current
  • 45.32 oz-in Rated Torque
  • 60 VDC Rated Voltage

Unit Price:

$393.82

Inventory:

8 Available

Part Number:

SBL40D2-02

* null product will be added to order

Looking For Higher Volume?

Motor Specifications

Frame Size1.570 in
Rated Voltage60 VDC
Rated Output Power 100 W
Rated Speed3000 RPM
Max Mechanical Speed6000 RPM
Rated Torque45.32 oz-in
Peak Torque128.87 oz-in
Rated Current5.2 A
Peak Current15.6 A rms
Voltage Constant 3.8 V rms/ K rpm
Torque Constant8.63832773 oz-in/A rms
Winding Resistance0.48 Ohm
Winding Inductance 0.58 mH
Weight2.205 lbs
BrakeNO
Rotor Inertia0.234 oz-in²
Encoder TypeIncremental
CPR Count2500 Pulse/Rev
Motor Length4.290 in
Rotor Pole Count8 pole
ConnectionMOLEX CONNECTOR
Insulation ClassClass B (130 C)
IP RatingIP65 (Shaft Seal must be installed to achieve IP Rating)

Dimensions

ModelDIM. A (length) in
SBL40D2-024.290 in

Torque Curves

  • Peak Range
  • Continuous Range

Speed

SBL40DC Series

Downloads

SBL40D2-02 Configured Datasheet (PDF)
Servo Motor Catalog (PDF)
