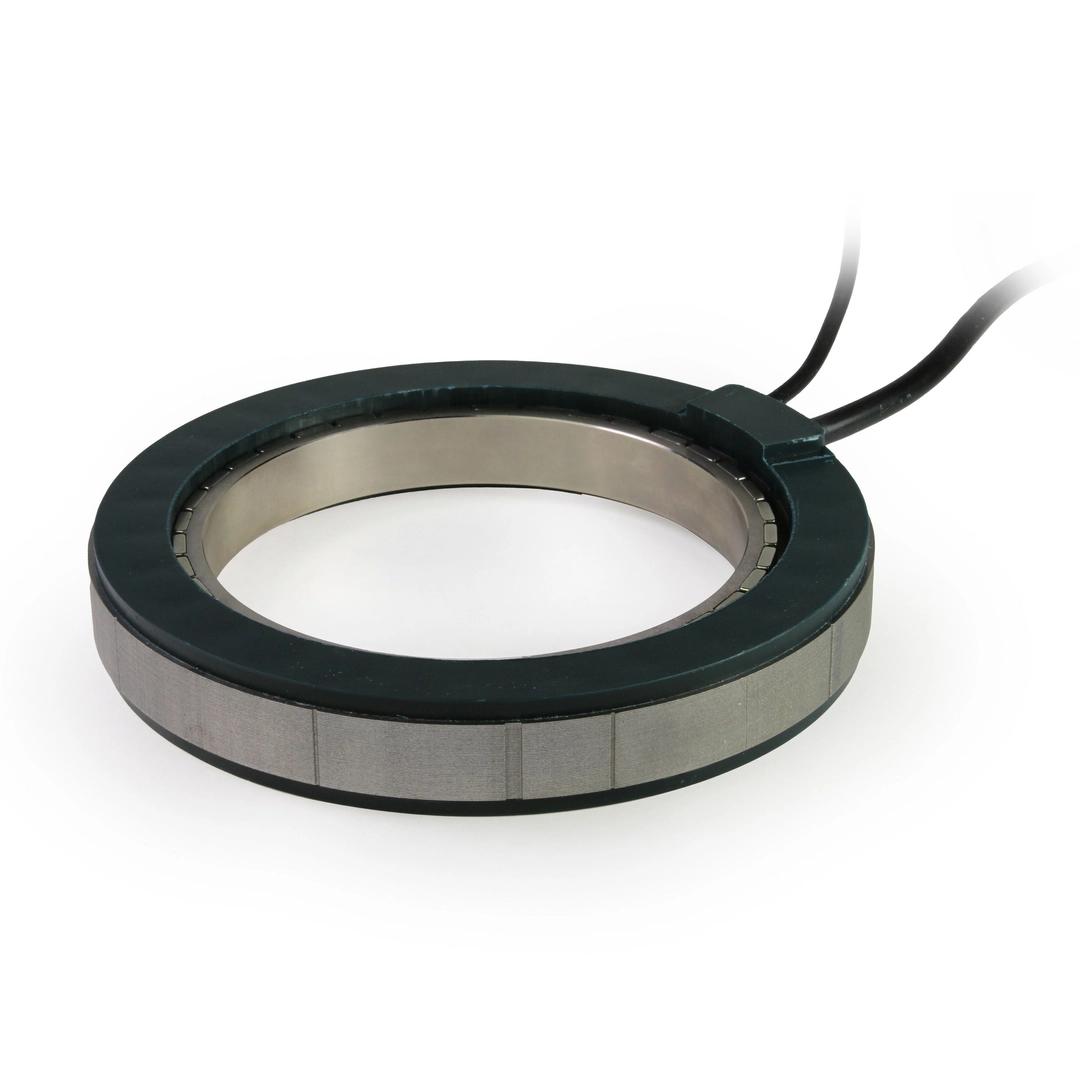

XCT-160 Series
160mm Frameless BLDC Motor

Features and Benefits:

Highly Integrated
High Torque
High Efficiency
Optional Hall Sensors

Specifications:

6.300 in Frame Size
4.3 to 10 A Rated Current
580.61 to 2294.11 oz-in Rated Torque
48 VDC Rated Voltage
0.67 to 1.75 in Length

Models

Model #	Frame size	Phase	Input Voltage	Rated Power	Rated Speed	Rated Torque	Rated Current	Resistance	Inertia, oz-in²	Weight, lbs	Availability
XCT-160CN008-325A	6.300 in	3	48 to 325 VDC	920 W	2145 RPM	580.61 oz-in	4.3 A	3	25.7 oz-in²	1.499 lbs	Quote
XCT-160CN016-325A	6.300 in	3	48 to 325 VDC	1124 W	1084 RPM	1401.96 oz-in	5.5 A	4.44	50.3 oz-in²	2.522 lbs	Quote
XCT-160CN030-48A	6.300 in	3	48 VDC	255 W	150 RPM	2294.11 oz-in	10 A	1.62	96.23 oz-in²	2.522 lbs	Quote

Motor Operating Specifications

Insulation Class	Class F 155 degree C
Dielectric Strength	500 VDC for 1 minute
Insulation Resistance	100 Ohm Min. 500 VDC
Ambient Operating Temperature	-22 °F to 185.00 °F
Storage Temperature	-4 °F to 212.00 °F
Humidity Range (%)	85% (RH) non-condensing

Downloads

Frameless BLDC Mounting and Installation Guide V2 (PDF)
