XCT-085 Series
XCT-085CN008-24A

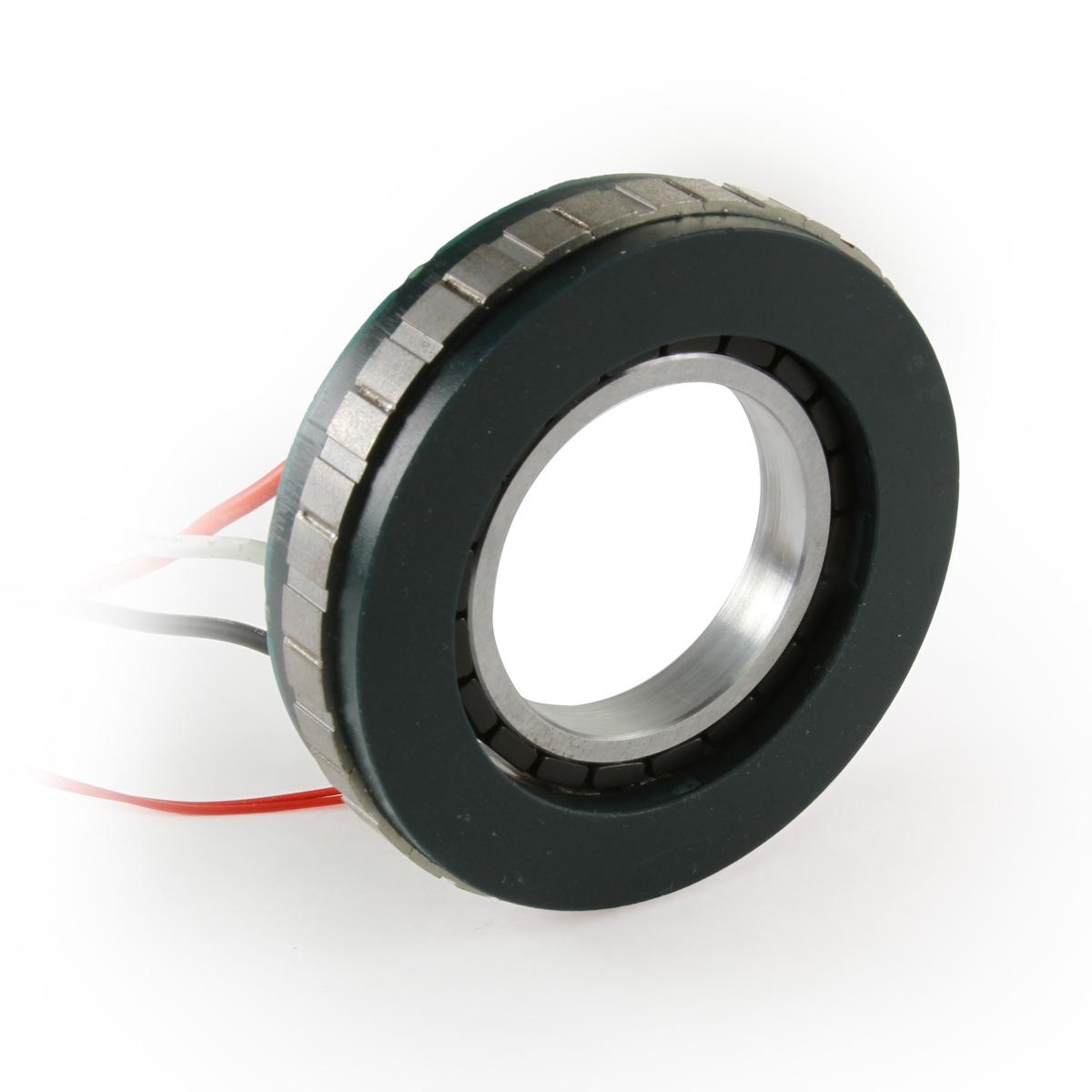

85mm Frameless BLDC Motor

Quick Facts

XCT-085CN008-24A Frameless BLDC Motors

Specifications:

3.350 in Frame Size
14.5 A Rated Current
198.26 oz-in Rated Torque
24 VDC Rated Voltage
0.310 in Length

Features and Benefits:

Highly Integrated
High Torque
High Efficiency
Optional Hall Sensors

Motor Specifications

Phase	3
Number of Poles	20
Frame Size	3.350 in
Stator Thickness	0.310 in
Rated Voltage	24 VDC
Rated Output Power	234 W
Rated Speed	1600 RPM
Max Speed (Consult with Lin for greater speeds)	2700 RPM
Rated Torque	198.26 oz-in
Rated Current	14.5 A
Max Torque	478.65 oz-in
Resistance	0.196 ohm
Terminal Inductance	0.33 mH
Torque Constant	46.024 oz-in/A
Rotor Inertia	9.46 oz-in²
Weight	0.728 lbs
Back EMF Constant	7.41 V/kRPM
Electrical Time Constant	1.68 ms
Mechanical Time Constant	0.15 ms

Dimensions

Model	Stator Thickness in MAX
XCT-085CN008-24A	0.310 in

Torque Curves

Peak Range
Continuous Range

Speed

Motor Operating Specifications

Insulation Class	Class F 155 degree C
Dielectric Strength	500 VDC for 1 minute
Insulation Resistance	100 Ohm Min. 500 VDC
Ambient Operating Temperature	-22 °F to 185.00 °F
Storage Temperature	-4 °F to 212.00 °F
Humidity Range (%)	85% (RH) non-condensing

XCT-085 Series

Downloads

XCT-085CN008-24A Configured Datasheet (PDF)

Frameless BLDC Mounting and Installation Guide V2 (PDF)

Download
