FC-070 Series
FC-070CH007-24A

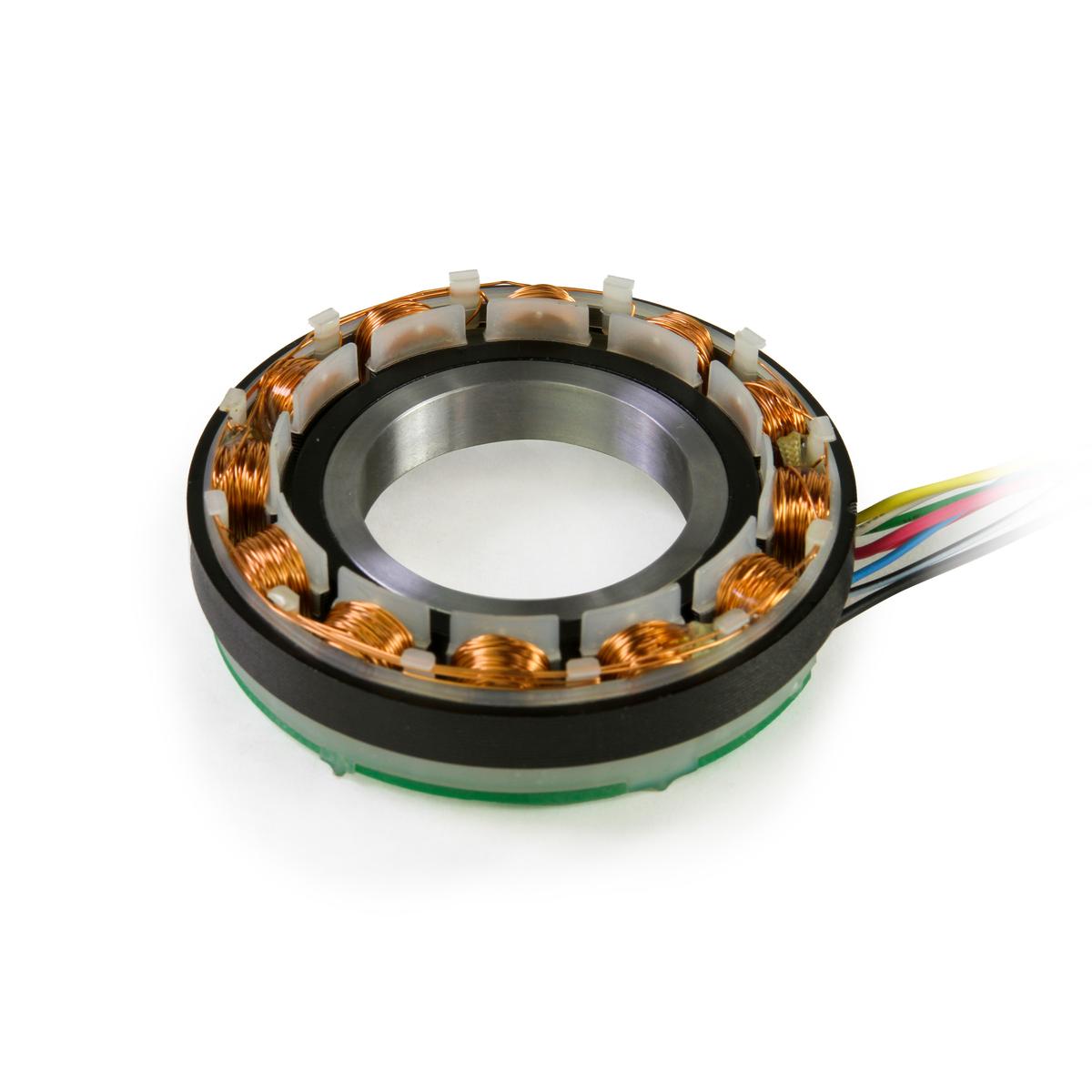

70mm Frameless BLDC Motor

Quick Facts

FC-070CH007-24A Frameless BLDC Motors

Specifications:

2.760 in Frame Size
4.5 A Rated Current
26.06 oz-in Rated Torque
24 VDC Rated Voltage
0.810 in Length

Features and Benefits:

Highly Integrated
High Torque
High Efficiency

Motor Specifications

Phase	3
Number of Poles	12
Frame Size	2.760 in
Stator Thickness	0.280 in
Rated Voltage	24 VDC
Rated Output Power	76 W
Rated Speed	4000 RPM
Max Speed (Consult with Lin for greater speeds)	5000 RPM
Rated Torque	26.06 oz-in
Rated Current	4.5 A
Max Torque	52.4 oz-in
Torque Constant	5.806 oz-in/A
Rotor Inertia	1.73 oz-in²
Weight	0.306 lbs
Back EMF Constant	5.8 V/kRPM
Electrical Time Constant	0.7 ms
Mechanical Time Constant	13.2 ms

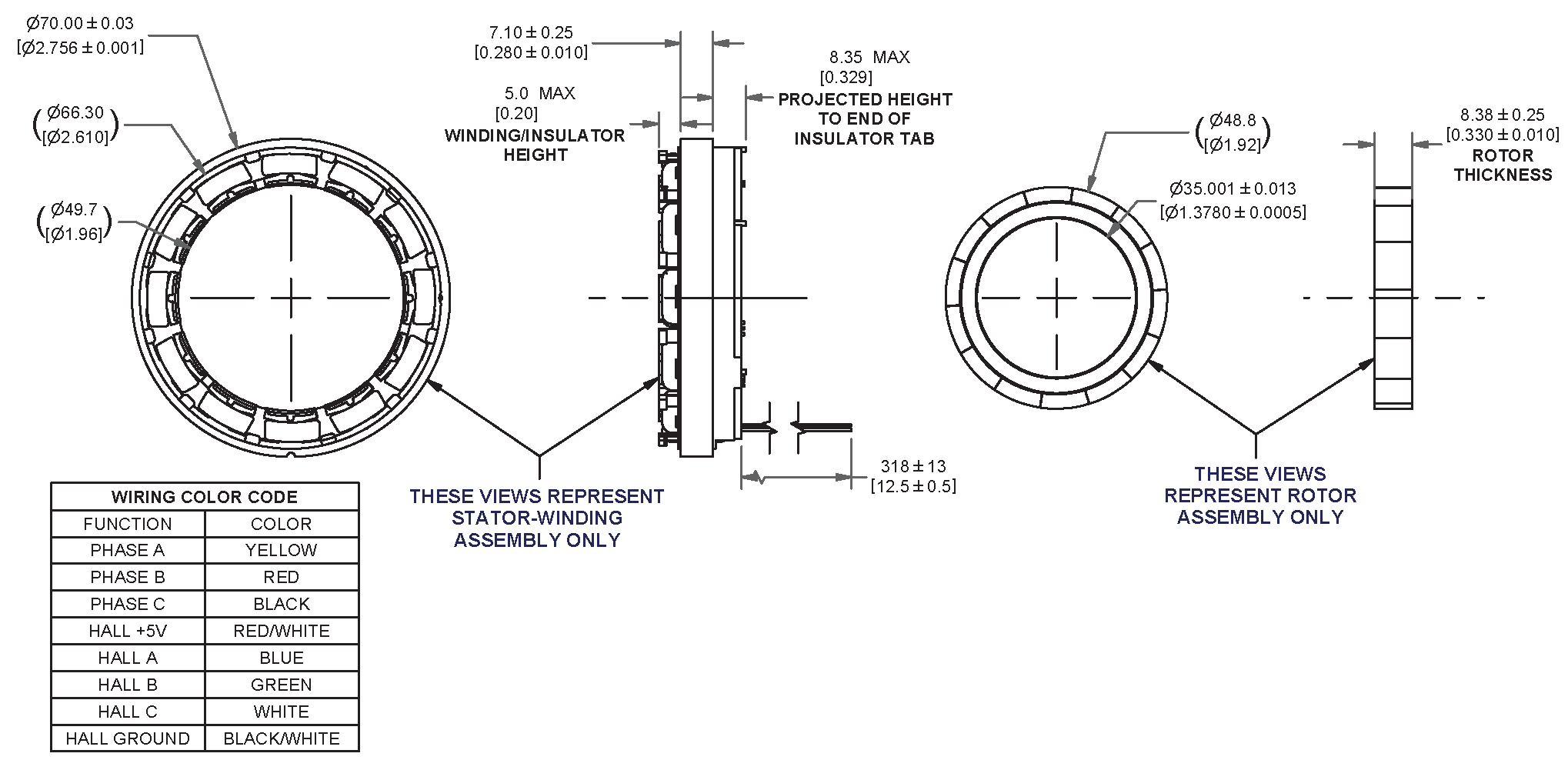

Dimensions

Model	Stator Thickness in MAX
FC-070CH007-24A	0.280 in

Torque Curves

Peak Range
Continuous Range

Speed

Generate new cureve based on different VDC

Motor Operating Specifications

Insulation Class	Class F 155 degree C
Dielectric Strength	500 VDC for 1 minute
Insulation Resistance	100 Ohm Min. 500 VDC
Ambient Operating Temperature	-4 °F to 122.00 °F
Storage Temperature	-4 °F to 212.00 °F
Humidity Range (%)	85% (RH) non-condensing
