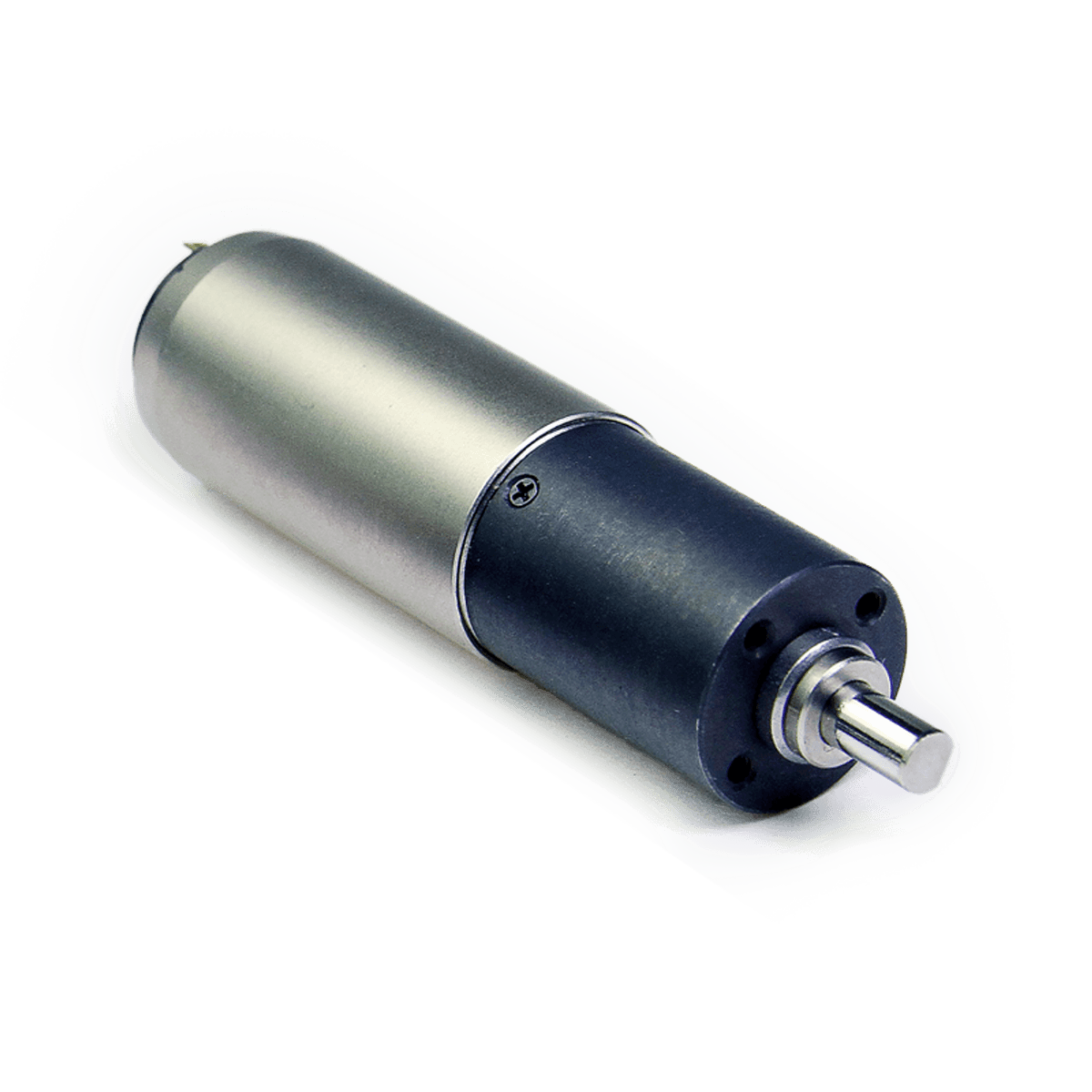

CL017 SeriesCL017CN-025-01-19GCoreless Brushed DC motor
Specifications:
- 0.670 in Frame Size
- 0.364 A Rated Current
- 8.1568 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 2.240 in Length
Features and Benefits:
- Ironless Design Eliminates Cogging
- Increased Efficiency and Torque
- Low Inertia Rotor for Fast Response Time
- Cost Effective Motor and Implementation
- Gearbox Options Available
Motor Specifications
| Frame Size | 0.670 in |
| Body Length | 2.240 in |
| Nominal Voltage | 12 VDC |
| No Load Speed | 540 RPM |
| Nominal speed | 390 RPM |
| Resistance | 9.3 ohm |
| Rated Torque | 8.1568 oz-in |
| Rated Current | 0.364 A |
| Max. force for press fits (static) | 11.24 lbf |
| Weight | 0.108 lbs |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL017CN-025-01-19G | 2.240 in |
Torque Curves
- Peak Range
- Continuous Range
Speed
RPM
Motor Operating Specifications
| Axial play | 0.010 in |
| Radial play | 0.004 in |
| Ambient Temperature | -4 ° to 149.00 °F |
| Max winding temperature | 212.00 °F |
| Thermal resistance (Housing-Ambient) | 70.34 °F/W |
| Thermal resistance (Winding-Housing) | 52.88 °F/W |
| Thermal time constant motor | 504 s |
| Thermal time constant winding | 10.96 s |
| Number of pole pairs | 1 |
CL017 Series
Downloads
CL017CN-025-01-19G Configured Datasheet (PDF)
