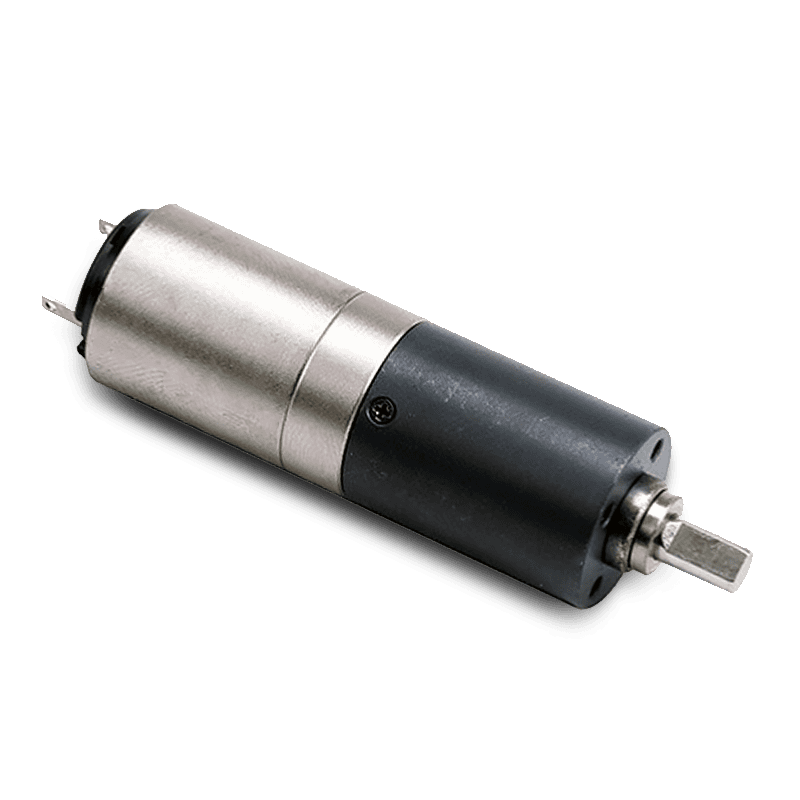

CL016CN025 Series
Coreless Brushed DC motor

  • 0.670 in Frame Size
  • 0.364 A Rated Current
  • 31.806 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.840 in Length
Features and Benefits:
  • Ironless Design Eliminates Cogging
  • Increased Efficiency and Torque
  • Low Inertia Rotor for Fast Response Time
  • Cost Effective Motor and Implementation

Motor Specifications

Frame Size0.670 in
Body Length1.840 in
Nominal Voltage12 VDC
Motor TypeMotor + Gearhead
Gearbox Ratio84:1
Number Of Stages3
Rated Speed89 RPM
Rated Torque31.806 oz-in
Rated Current0.364 A
No Load Speed 123 RPM
No Load Current31 mA
Stall Torque123.2024 oz-in
Stall Current1.29 A
Speed Constant870 RPM/V
Mechanical Time Constant5.8 ms
Speed Torque Gradient 104.368 RPM/oz-in
Max. Efficiency73%
Terminal Resistance9.3 ohm
Rotor Inertia0.004 oz-in²
Number of pole pairs1
Brush TypeGraphite Brushes
Weight0.116 lbs


ModelDIM. A (length) in
CL017CN025-12-G841.840 in

Motor Operating Specifications

Ambient Temperature-4 ° to 185.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)95.00 °F/W
Thermal resistance (Winding-Housing)55.76 °F/W
Thermal time constant motor360 s
Thermal time constant winding6.2 s

CL016CN025 Series


CL017CN025-12-G84 Configured Datasheet (PDF)
