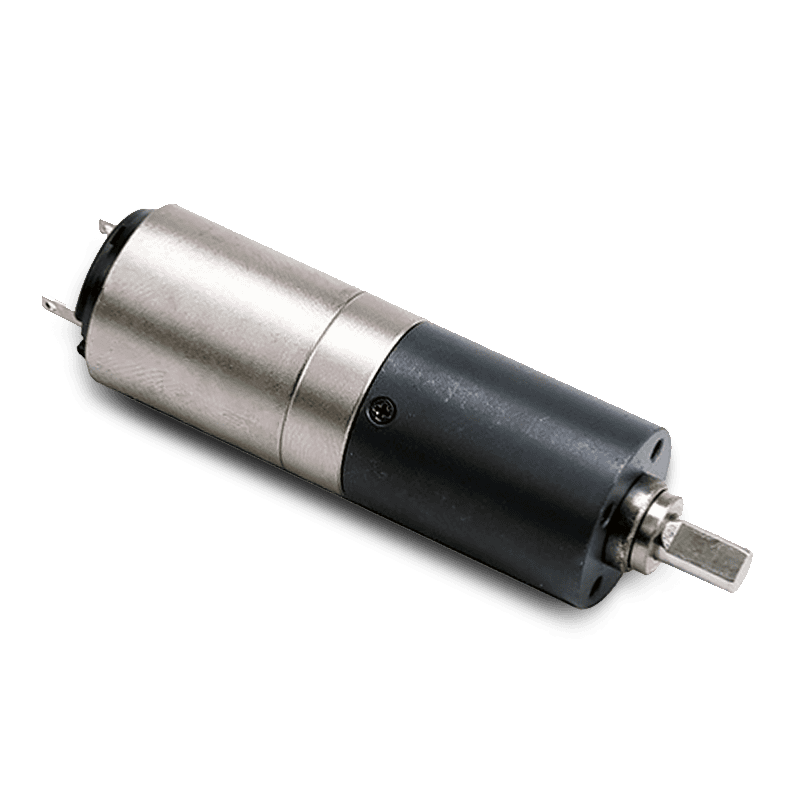

CL016CN025 Series
Coreless Brushed DC motor

Features and Benefits:
  • Ironless Design Eliminates Cogging
  • Increased Efficiency and Torque
  • Low Inertia Rotor for Fast Response Time
  • Cost Effective Motor and Implementation

Motor Specifications

Frame Size0.670 in
Body Length1.700 in
Nominal Voltage12 VDC
Motor TypeMotor + Gearhead
Gearbox Ratio19:1
Number Of Stages2
Rated Speed390 RPM
Rated Torque8.1568 oz-in
Rated Current0.364 A
No Load Speed 540 RPM
No Load Current26.4 mA
Stall Torque31.1546 oz-in
Stall Current1.29 A
Speed Constant870 RPM/V
Mechanical Time Constant5.8 ms
Speed Torque Gradient 104.368 RPM/oz-in
Max. Efficiency81%
Terminal Resistance9.3 ohm
Rotor Inertia0.004 oz-in²
Number of pole pairs1
Brush TypeGraphite Brushes
Weight0.108 lbs


ModelDIM. A (length) in
CL017CN025-12-G191.700 in

Motor Operating Specifications

Ambient Temperature-4 ° to 185.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)95.00 °F/W
Thermal resistance (Winding-Housing)55.76 °F/W
Thermal time constant motor360 s
Thermal time constant winding6.2 s

CL016CN025 Series


CL017CN025-12-G19 Configured Datasheet (PDF)
