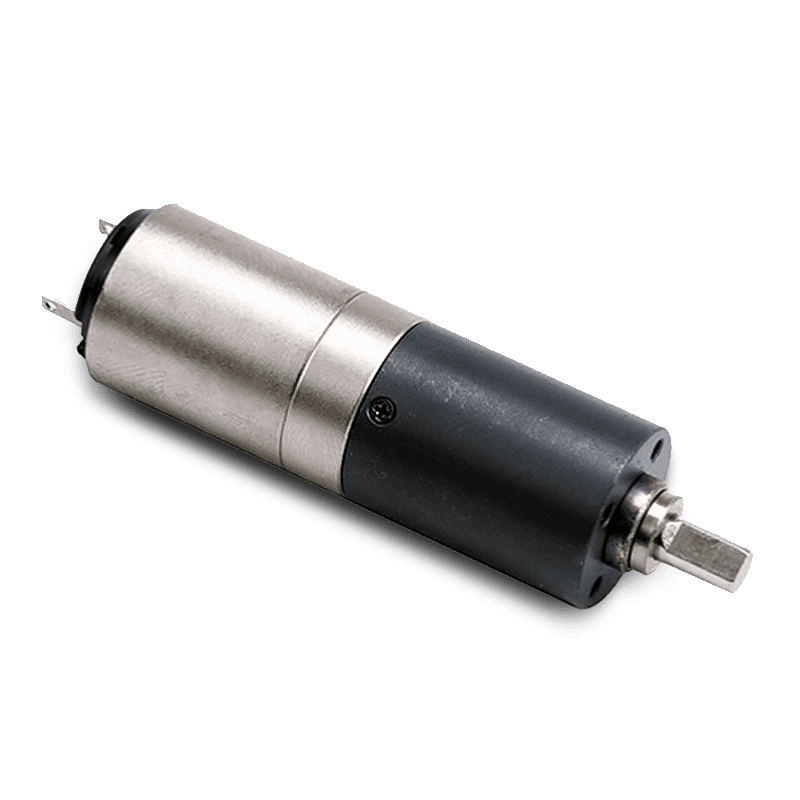

CL016CN025 Series
CL016CN025-12-19G
Coreless Brushed DC motor

Specifications:
  • 0.630 in Frame Size
  • 0.207 A Rated Current
  • 4.2484 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.700 in Length
Features and Benefits:
  • Ironless Design Eliminates Cogging
  • Increased Efficiency and Torque
  • Low Inertia Rotor for Fast Response Time
  • Cost Effective Motor and Implementation

Motor Specifications

Frame Size0.630 in
Body Length1.700 in
Nominal Voltage12 VDC
Gearbox RatioNA
Rated Torque4.2484 oz-in
Rated Current0.207 A
No Load Speed 552 RPM
Nominal Speed296 RPM
Max. force for press fits (static)11.24 lbf
Weight0.096 lbs

Dimensions

ModelDIM. A (length) in
CL016CN025-12-19G1.700 in

Motor Operating Specifications

Max. force for press fits (static)11.24 lbf

CL016CN025 Series

Downloads

CL016CN025-12-19G Configured Datasheet (PDF)
Download
