CL016 Series

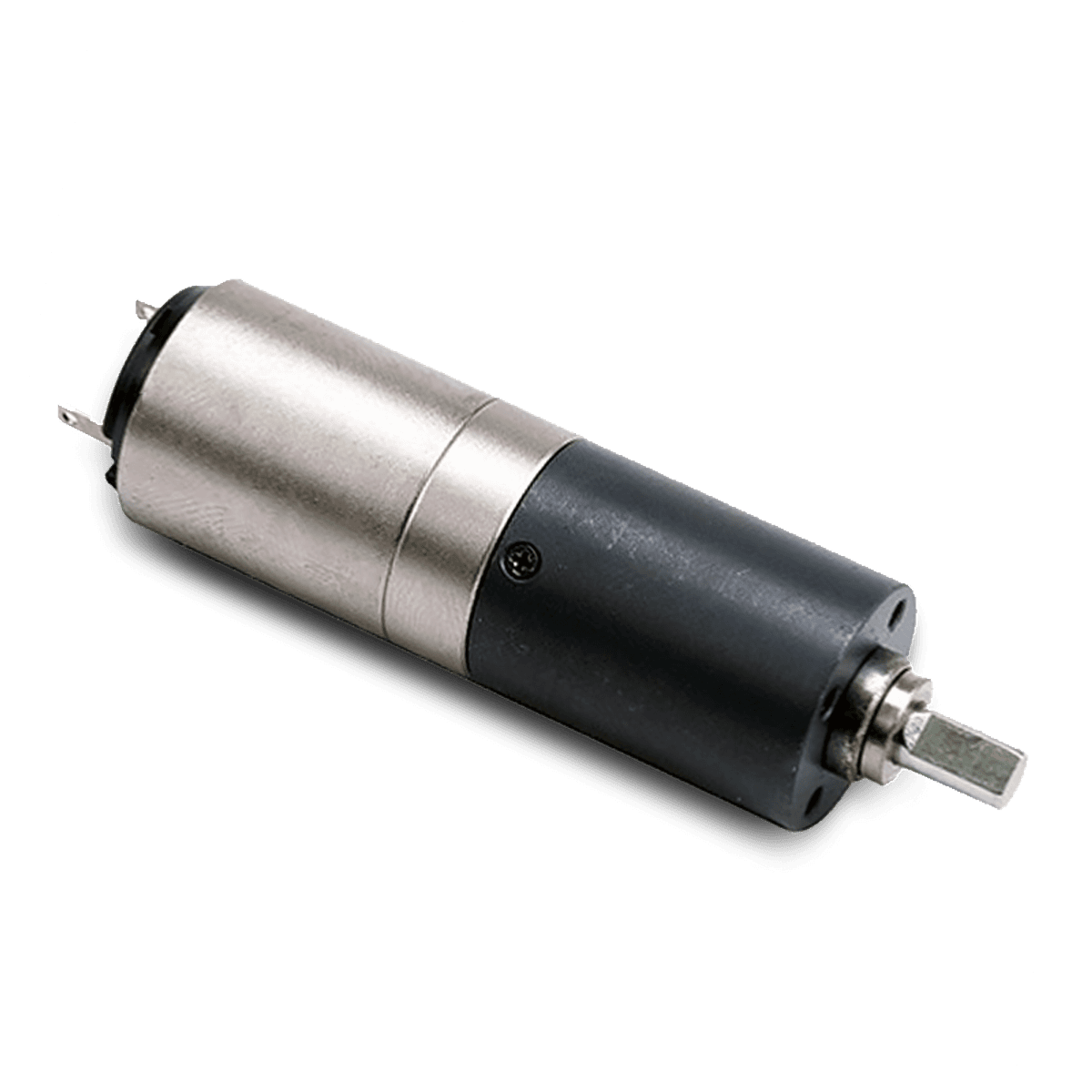

CL016CN-025-01-19G
Coreless Brushed DC motor

Specifications:
  • 0.630 in Frame Size
  • 0.207 A Rated Current
  • 4.2484 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.700 in Length
Features and Benefits:
  • Ironless Design Eliminates Cogging
  • Increased Efficiency and Torque
  • Low Inertia Rotor for Fast Response Time
  • Cost Effective Motor and Implementation
  • Gearbox Options Available

Motor Specifications

Frame Size0.630 in
Body Length1.700 in
Nominal Voltage12 VDC
No Load Speed 552 RPM
Nominal speed296 RPM
Resistance27.5 ohm
Rated Torque4.2484 oz-in
Rated Current0.207 A
Max. force for press fits (static)11.24 lbf
Weight0.096 lbs

Dimensions

ModelDIM. A (length) in
CL016CN-025-01-19G1.700 in

Torque Curves

  • Peak Range
  • Continuous Range

Speed

RPM

Motor Operating Specifications

Axial play0.010 in
Radial play0.004 in
Ambient Temperature-4 ° to 149.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)70.34 °F/W
Thermal resistance (Winding-Housing)52.88 °F/W
Thermal time constant motor504 s
Thermal time constant winding10.96 s
Number of pole pairs1
