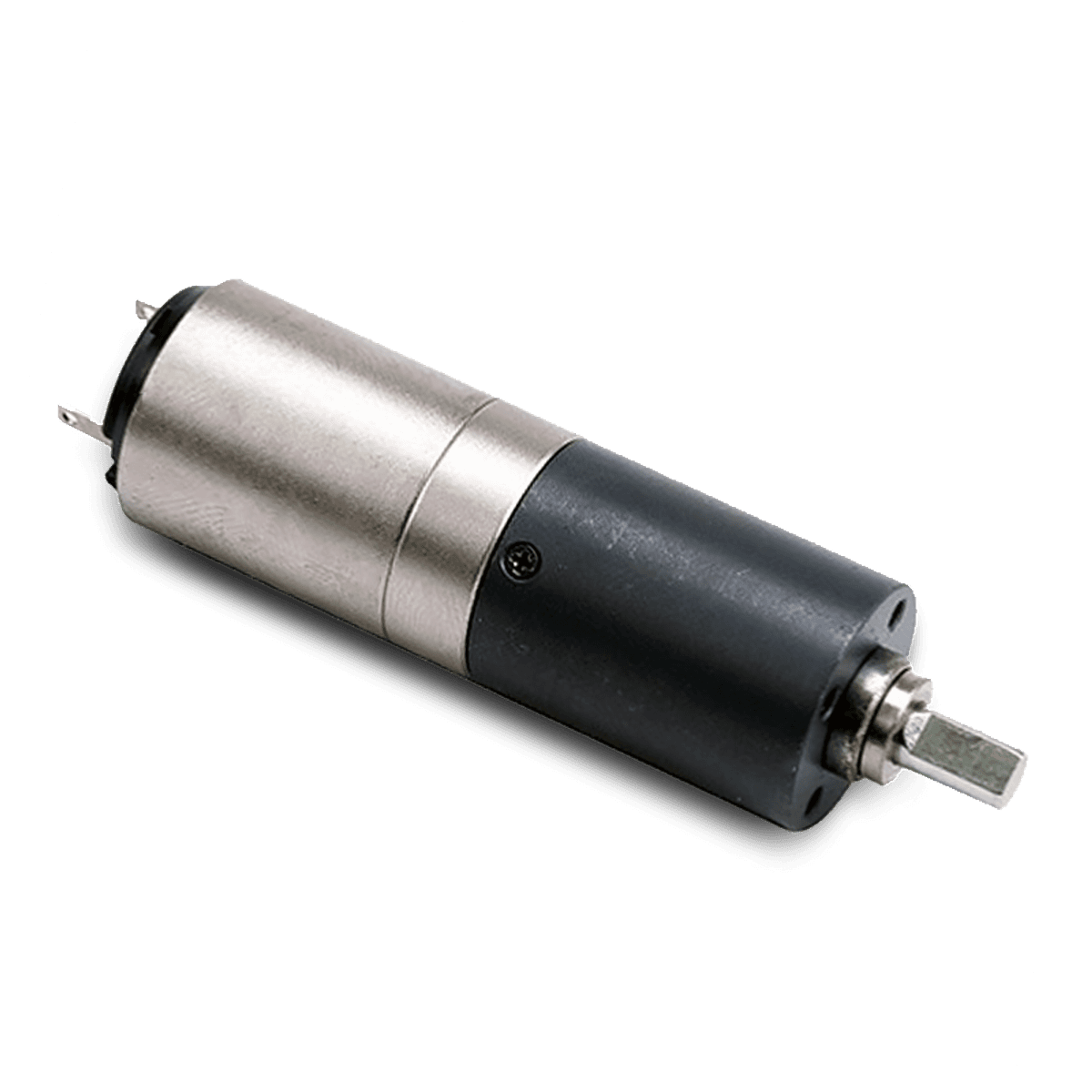

CL016 SeriesCoreless Brushed DC motor
Features and Benefits:
- Ironless Design Eliminates Cogging
- Increased Efficiency and Torque
- Low Inertia Rotor for Fast Response Time
- Cost Effective Motor and Implementation
- Gearbox Options Available
Specifications:
- 0.630 in Frame Size
- 0.207 A Rated Current
- 4.2484 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 1.7 in Length
Models
| Model # | Frame size | Nominal Voltage | No Load Speed | Rated Current | Rated Torque | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|
| CL016CN-025-01-19G | 0.630 in | 12 VDC | 552 RPM | 0.207 A | 4.2484 oz-in | 0.096 lbs | quote |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL016CN-025-01-19G | 1.700 in |
Torque Curves
- Peak Range
- Continuous Range
Speed
RPM
Motor Operating Specifications
| Axial play | 0.010 in |
| Radial play | 0.004 in |
| Ambient Temperature | -4 ° to 149.00 °F |
| Max winding temperature | 212.00 °F |
| Thermal resistance (Housing-Ambient) | 70.34 °F/W |
| Thermal resistance (Winding-Housing) | 52.88 °F/W |
| Thermal time constant motor | 504 s |
| Thermal time constant winding | 10.96 s |
| Number of pole pairs | 1 |
