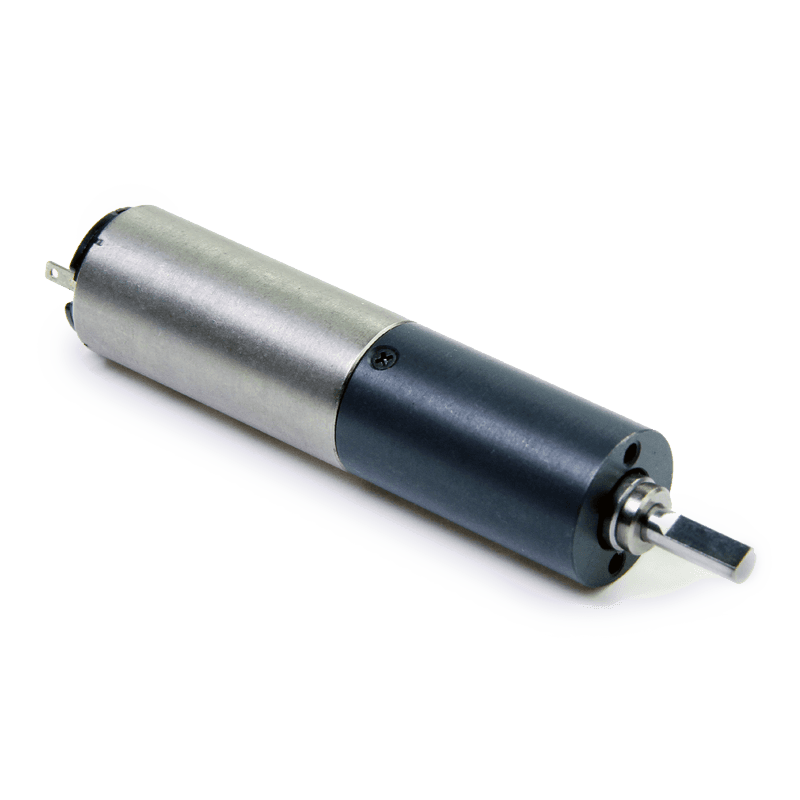

CL013CN020 SeriesCL013CN028-06-G16Coreless Brushed DC motor
Features and Benefits:
- Ironless Design Eliminates Cogging
- Increased Efficiency and Torque
- Low Inertia Rotor for Fast Response Time
- Cost Effective Motor and Implementation
Motor Specifications
| Frame Size | 0.510 in |
| Body Length | 1.870 in |
| Nominal Voltage | 6 VDC |
| Gearbox Ratio | NA |
| Rated Torque | 6.0893 oz-in |
| Rated Current | 0.59 A |
| No Load Speed | 605 RPM |
| Number of pole pairs | 1 |
| Nominal Speed | 372 RPM |
| Max. force for press fits (static) | 3.372 lbf |
| Weight | 0.075 lbs |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL013CN028-06-16G | 1.870 in |
Motor Operating Specifications
| Axial play | 0.010 in |
| Radial play | 0.004 |
| Max. force for press fits (static) | 3.372 lbf |
| Ambient Temperature | -4 ° to 149.00 °F |
| Max winding temperature | 212.00 °F |
| Thermal resistance (Housing-Ambient) | 123.08 °F/W |
| Thermal resistance (Winding-Housing) | 62.24 °F/W |
| Thermal time constant motor | 76 s |
| Thermal time constant winding | 4.14 s |
CL013CN020 Series
Downloads
CL013CN028-06-G16 Configured Datasheet (PDF)
