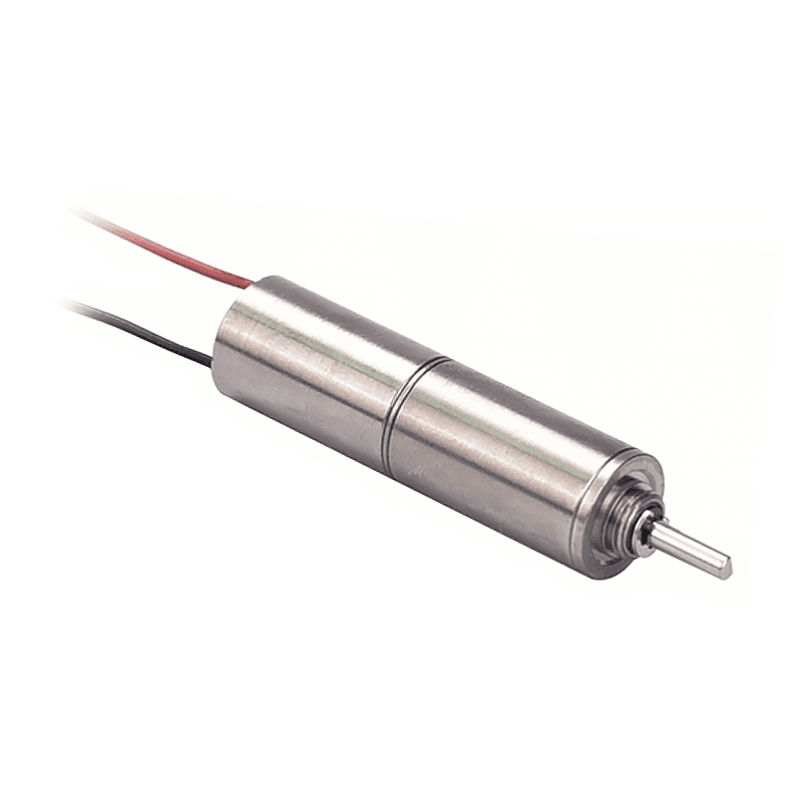

Featured product media

CL010CN017 Series
Coreless Brushed DC motor

Features and Benefits:
  • Ironless Design Eliminates Cogging
  • Increased Efficiency and Torque
  • Low Inertia Rotor for Fast Response Time
  • Cost Effective Motor and Implementation

Motor Specifications

Frame Size0.390 in
Body Length1.590 in
Nominal Voltage12 VDC
Motor TypeMotor + Gearhead
Gearbox RatioNA
Rated Torque9.7854 oz-in
Rated Current0.188 A
No Load Speed 206 RPM
Number of pole pairs1
Nominal Speed102 RPM
Weight0.042 lbs


ModelDIM. A (length) in
CL010CN025-12-64G1.590 in

Motor Operating Specifications

Axial play0.008 in
Radial play0.003
Ambient Temperature-4 ° to 149.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)130.10 °F/W
Thermal resistance (Winding-Housing)74.12 °F/W
Thermal time constant motor108 s
Thermal time constant winding2.53 s

CL010CN017 Series


CL010CN025-12-64G Configured Datasheet (PDF)
