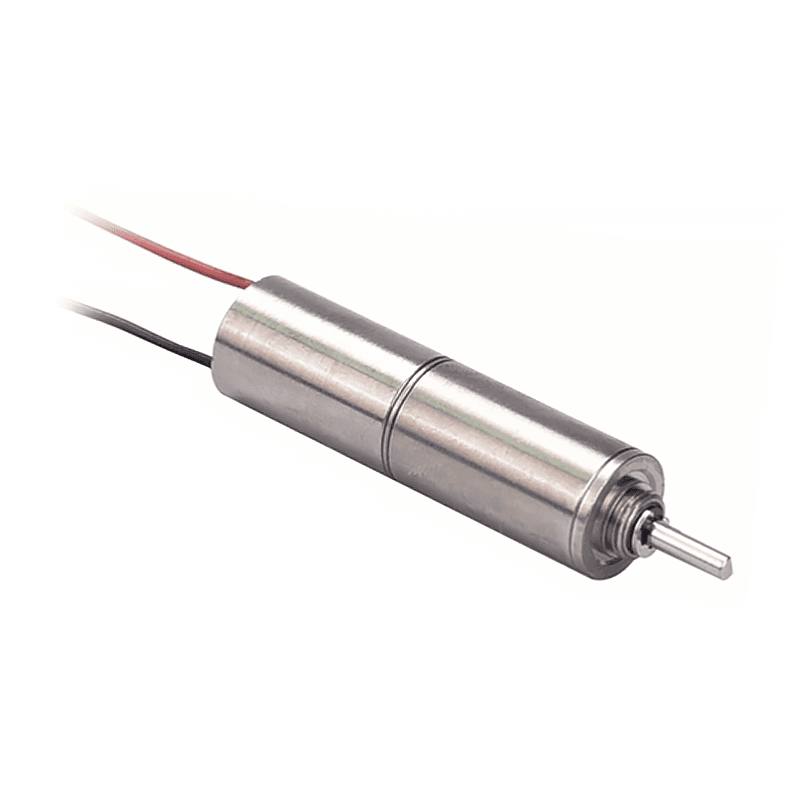

CL010CN017 SeriesCL010CN025-06-16GCoreless Brushed DC motor
Features and Benefits:
- Ironless Design Eliminates Cogging
- Increased Efficiency and Torque
- Low Inertia Rotor for Fast Response Time
- Cost Effective Motor and Implementation
Motor Specifications
| Frame Size | 0.390 in |
| Body Length | 1.470 in |
| Nominal Voltage | 6 VDC |
| Motor Type | Motor + Gearhead |
| Gearbox Ratio | NA |
| Rated Torque | 3.1155 oz-in |
| Rated Current | 0.357 A |
| No Load Speed | 732 RPM |
| Number of pole pairs | 1 |
| Nominal Speed | 369 RPM |
| Weight | 0.039 lbs |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL010CN025-06-16G | 1.470 in |
Motor Operating Specifications
| Axial play | 0.008 in |
| Radial play | 0.003 |
| Ambient Temperature | -4 ° to 149.00 °F |
| Max winding temperature | 212.00 °F |
| Thermal resistance (Housing-Ambient) | 130.10 °F/W |
| Thermal resistance (Winding-Housing) | 74.12 °F/W |
| Thermal time constant motor | 108 s |
| Thermal time constant winding | 2.53 s |
CL010CN017 Series
Downloads
CL010CN025-06-16G Configured Datasheet (PDF)
