CL010 Series

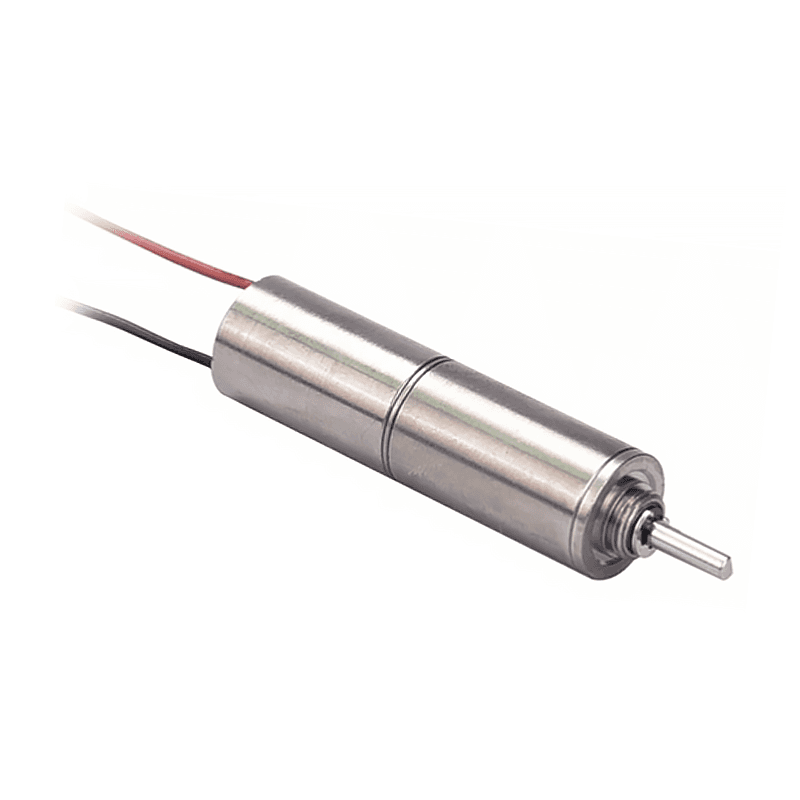

CL010CN-025-02-64G
Coreless Brushed DC motor

Specifications:
  • 0.390 in Frame Size
  • 0.188 A Rated Current
  • 9.7854 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.590 in Length
Features and Benefits:
  • Ironless Design Eliminates Cogging
  • Increased Efficiency and Torque
  • Low Inertia Rotor for Fast Response Time
  • Cost Effective Motor and Implementation
  • Gearbox Options Available

Motor Specifications

Frame Size0.390 in
Body Length1.590 in
Nominal Voltage12 VDC
No Load Speed 206 RPM
Nominal speed102 RPM
Resistance32.4 ohm
Rated Torque9.7854 oz-in
Rated Current0.188 A
Weight0.042 lbs

Dimensions

ModelDIM. A (length) in
CL010CN-025-02-64G1.590 in

Torque Curves

  • Peak Range
  • Continuous Range

Speed

RPM

Motor Operating Specifications

Axial play0.008 in
Radial play0.003 in
Ambient Temperature-4 ° to 149.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)130.10 °F/W
Thermal resistance (Winding-Housing)74.12 °F/W
Thermal time constant motor108 s
Thermal time constant winding2.53 s
Number of pole pairs1

CL010 Series

Downloads

CL010CN-025-02-64G Configured Datasheet (PDF)
Download
