CL008 Series

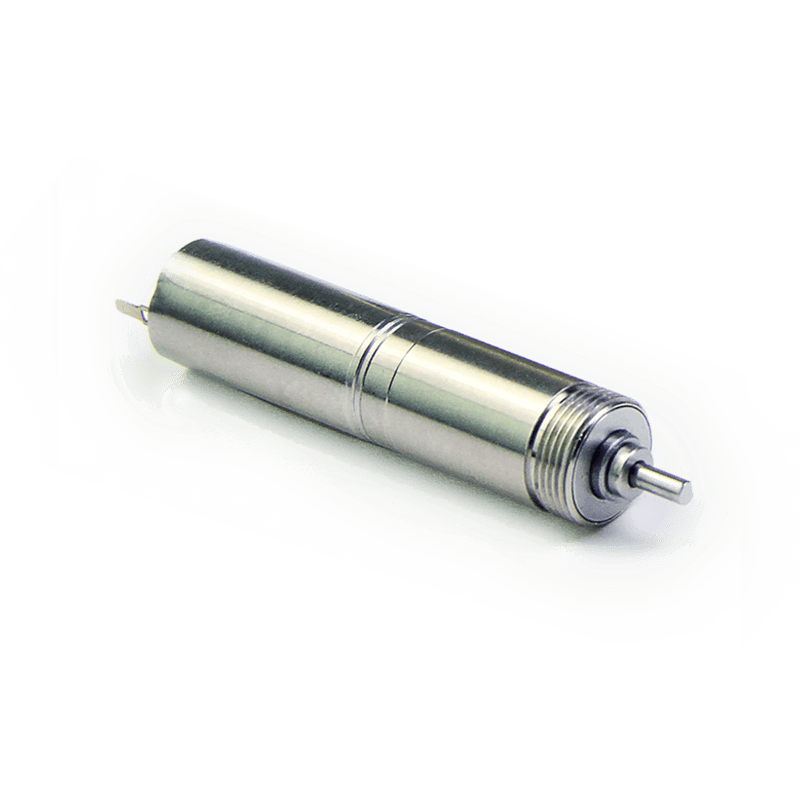

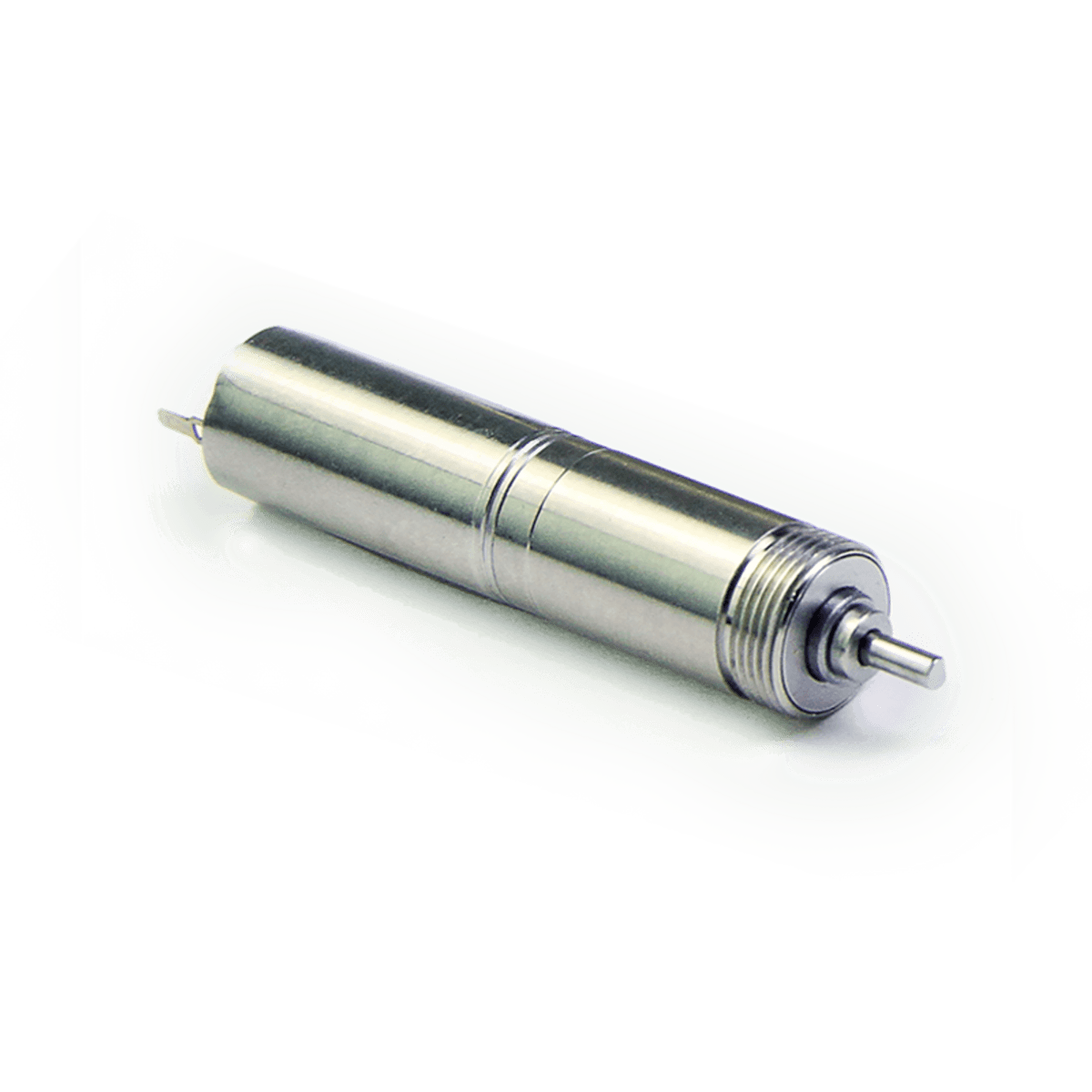

CL008CN-017-01-256G
Coreless Brushed DC motor

Specifications:
  • 0.310 in Frame Size
  • 0.165 A Rated Current
  • 10.5076 oz-in Rated Torque
  • 6 VDC Nominal Voltage
  • 1.310 in Length
Features and Benefits:
  • Ironless Design Eliminates Cogging
  • Increased Efficiency and Torque
  • Low Inertia Rotor for Fast Response Time
  • Cost Effective Motor and Implementation
  • Gearbox Options Available

Motor Specifications

Frame Size0.310 in
Body Length1.310 in
Nominal Voltage6 VDC
No Load Speed 53 RPM
Nominal speed13 RPM
Resistance28 ohm
Rated Torque10.5076 oz-in
Rated Current0.165 A
Weight0.02 lbs

Dimensions

ModelDIM. A (length) in
CL008CN-017-01-256G1.310 in

Torque Curves

  • Peak Range
  • Continuous Range

Speed

RPM

Motor Operating Specifications

Axial play0.006 in
Radial play0.003 in
Ambient Temperature-4 ° to 149.00 °F
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)127.04 °F/W
Thermal resistance (Winding-Housing)79.52 °F/W
Thermal time constant motor21 s
Thermal time constant winding2.37 s
Number of pole pairs1

Downloads

CL008CN-017-01-256G Configured Datasheet (PDF)
Download
