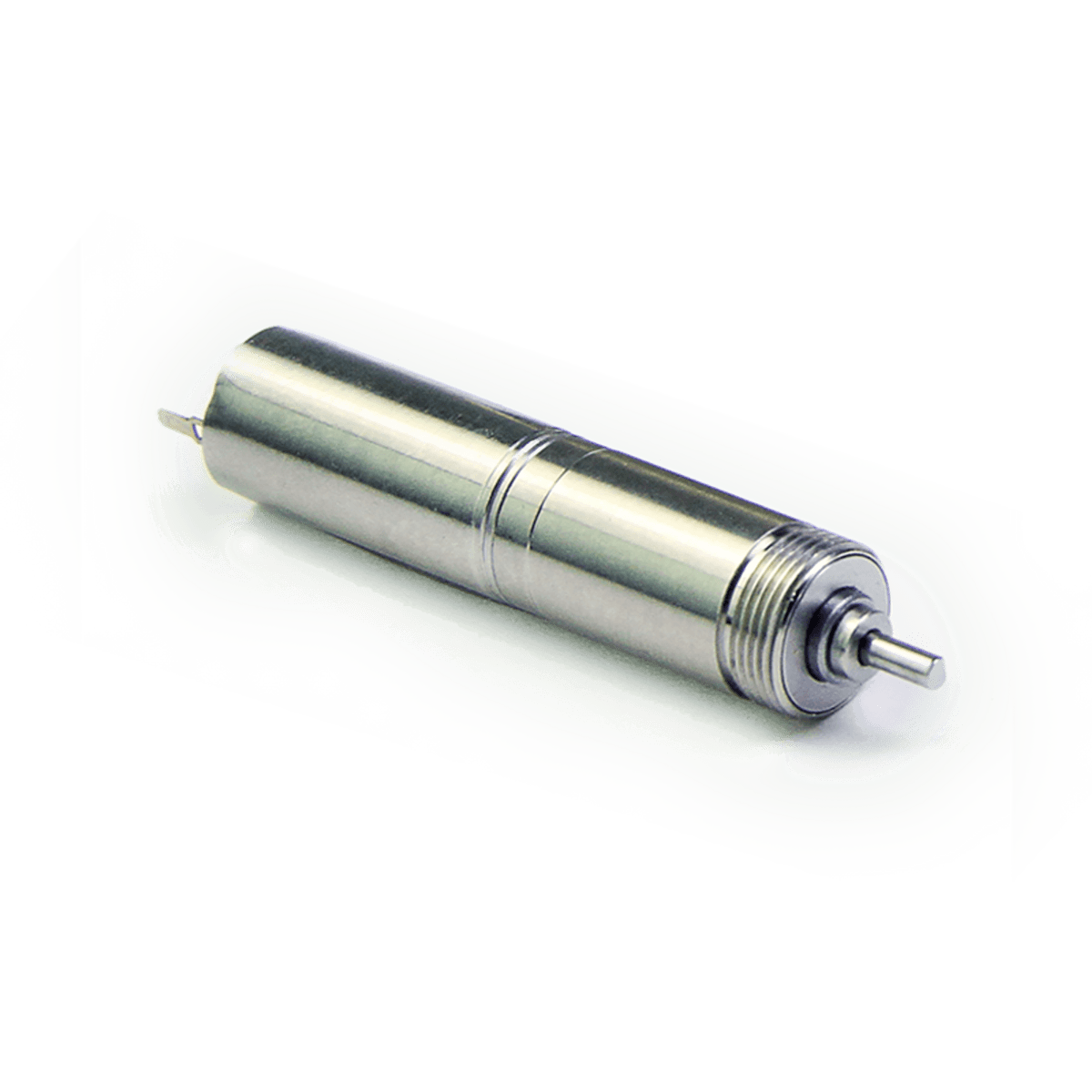

CL008 SeriesCoreless Brushed DC motor
Features and Benefits:
- Ironless Design Eliminates Cogging
- Increased Efficiency and Torque
- Low Inertia Rotor for Fast Response Time
- Cost Effective Motor and Implementation
- Gearbox Options Available
Specifications:
- 0.310 in Frame Size
- 0.165 A Rated Current
- 10.5076 oz-in Rated Torque
- 6 VDC Nominal Voltage
- 1.31 in Length
Models
| Model # | Frame size | Nominal Voltage | No Load Speed | Rated Current | Rated Torque | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|
| CL008CN-017-01-256G | 0.310 in | 6 VDC | 53 RPM | 0.165 A | 10.5076 oz-in | 0.02 lbs | quote |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL008CN-017-01-256G | 1.310 in |
Torque Curves
- Peak Range
- Continuous Range
Speed
RPM
Motor Operating Specifications
| Axial play | 0.006 in |
| Radial play | 0.003 in |
| Ambient Temperature | -4 ° to 149.00 °F |
| Max winding temperature | 212.00 °F |
| Thermal resistance (Housing-Ambient) | 127.04 °F/W |
| Thermal resistance (Winding-Housing) | 79.52 °F/W |
| Thermal time constant motor | 21 s |
| Thermal time constant winding | 2.37 s |
| Number of pole pairs | 1 |
