LPM35 Series

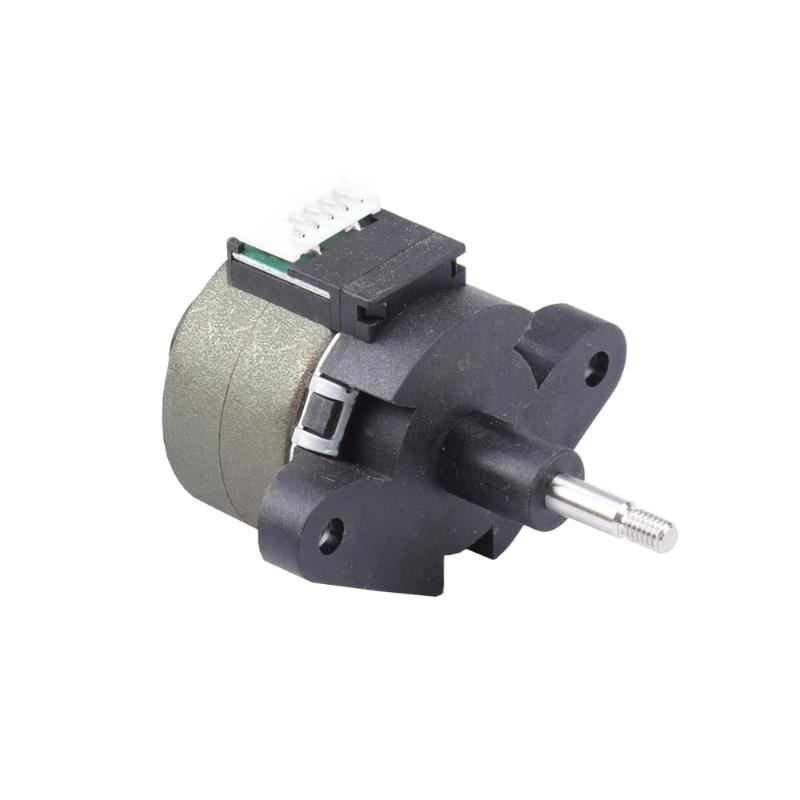

LCPM35L-150-057

Specifications:
  • 1.380 in Frame Size
  • 15° Step Angle
  • 13.5 Rated Voltage
  • 0.566 A/Phase

Dimensions

ModelDIM. A (length) in
LCPM35L-150-0571.530 in

Performance Curve

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Motor Specifications

Part NumberLCPM35L-150-057
StyleLC
Step Angle15°
Frame Size1.380 in
Body Length1.530 in
Rated Current0.566 AMP
Rated Voltage13.5 VDC
Leadscrew Lead0.031 in
Step Travel0.0013 in
Holding Force8.992 lbf
Resistance7.7 ohm
ConnectionBipolar
Phase2
Weight0.254 lbs

Operating Specifications

Radial Shaft Play0.002 in @ 1.124 lbf
Axial Shaft Play0.006 in @ 3.372 lbf
Insulation RatingClass B
Ambient Temperature Rating-4 °F to 122.00 °F
Storage Temperature Rating-13 °F to 158.00 °F
Humidity Range10 - 95% RH
