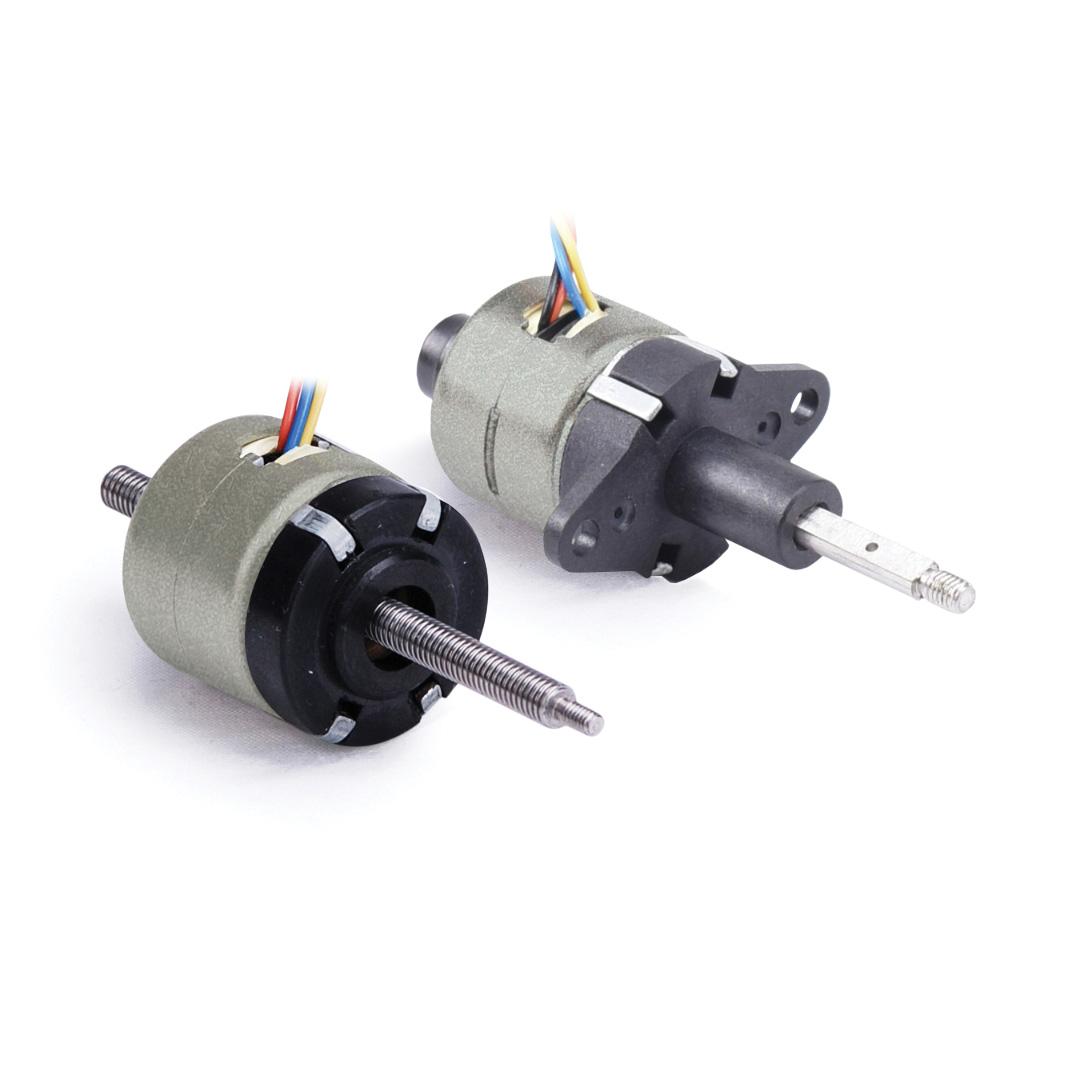

LPM20 Series
Specifications:
- 0.790 in Frame Size
- 15° Step Angle
- 3.4 to 24 Rated Voltage
- 0.4 A/Phase
Models
| Model # | Frame size | Body length | Step Angle | Rated voltage | Rated amperage | Leadscrew Lead | Step Travel | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|
| LCPM20S-150-040 | 0.790 in | 0.830 in | 15° | 24 VDC | 0.4 AMP/Phase | 0.024 in | 0.001 in | 0.071 lbs | online |
| LNPM20M-150-040 | 0.790 in | 1.000 in | 15° | 3.4 VDC | 0.4 AMP/Phase | 0.024 in | 0.001 in | 0.06 lbs | online |
Performance Curve
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Dimensions
| Model | DIM. A (length) in |
|---|---|
| LCPM20S-150-040 | 0.830 in |
| LNPM20M-150-040 | 1.000 in |
Operating Specifications
| Radial Shaft Play | 0.002 in @ 1.124 lbf |
| Axial Shaft Play | 0.008 in @ 2.023 lbf |
| Insulation Rating | Class B |
| Ambient Temperature Rating | -4 °F to 122.00 °F |
